OKEX & Binance Websocket High-Frequency Multi-Symbols Trading Template

Template
Created: 2022-12-27 15:37:42
Last modified: 3 years ago
12
Follow
660
Followers

This template implements the following features:

Public stream subscription for trades and depth synthesis
Private stream subscription to maintain local order and position information, as well as balance information
Maintenance of timeout states for canceling orders and support for OKEX's amendOrders to modify orders
Support for multiple varieties for easy high-frequency strategy operations with the lowest possible latency across multiple markets
The addition of the EventLoop function (which requires the latest docker support) which allows for waiting for any websocket data return in the case of multiple websocket connections to avoid polling.
Support for OKEX and Binance futures and Binance spot and leverage trading, OKEX spot is not yet supported but can be modified by those interested.
OKEX private stream subscription requires a Key and password to be included as parameters in the template.
Automated handling of basic network functions such as reconnection in case of disconnection.
Support for event callbacks of order and cancellation reports in private streams.
Unifies the order placement logic for both exchanges and can be viewed in the template source code or examples.
Support for subscribing to multiple exchange websockets at the same time.
Order placement modification and deletion can be done in bulk as tasks and will be handled automatically.
When placing high-frequency orders, the exchange may not return order information promptly (on the private channel) but in such case, market conditions may have already changed. The template maintains a local order status and strategy implementation is included. It automatically recognizes whether it is OKEX or Binance.
A simple example is provided below and it is strongly recommended to read the source code to better customize your own functionality.

an example:

function onTick(ctx, event) { if (event.depth) { Log("depth update", event) } if (event.trades) { Log("trades received", event) } if (event.balance || event.positions) { Log("account update", event) } if (event.orders) { Log("private orders update", event) } // include orders, positions, balance for latest Log("account", ctx.wsPrivate.account) // for test only if (false) { return { amendOrders: [{ instId: event.instId, clOrdId: "xxxx*****", cxlOnFail: true, newSz: "2", }], newOrders: [{ instId: event.instId, clOrdId: UUID(), side: "sell", tdMode: "cross", ordType: "post_only", px: event.depth.asks[0].price.toFixed(4), sz: "1", }, { instId: event.instId, clOrdId: UUID(), side: "sell", tdMode: "cross", ordType: "post_only", px: event.depth.asks[0].price.toFixed(4), sz: "1", }], cancelOrders: [{ instId: order.instId, clOrdId: order.Id }] } } } function main() { let instId = exchange.SetContractType("swap").InstrumentID let ctx = $.NewWSS(exchange, function(ws) { let msg = null if (exchange.GetName() === 'Futures_OKCoin') { msg = { op: "subscribe", args: [{ channel: "books5", instId: instId, }, { channel: "trades", instId: instId, }] } } else { let symbol = exchange.GetCurrency().replace('_', '').toLowerCase() msg = { method: "SUBSCRIBE", params: [symbol + "@aggTrade", symbol + "@depth20@100ms"], id: "1", } } ws.write(JSON.stringify(msg)) Log("subscribe", msg, "channel") LogStatus("Ready") }, onTick, Debug) while (true) { ctx.poll() EventLoop(1000) } }

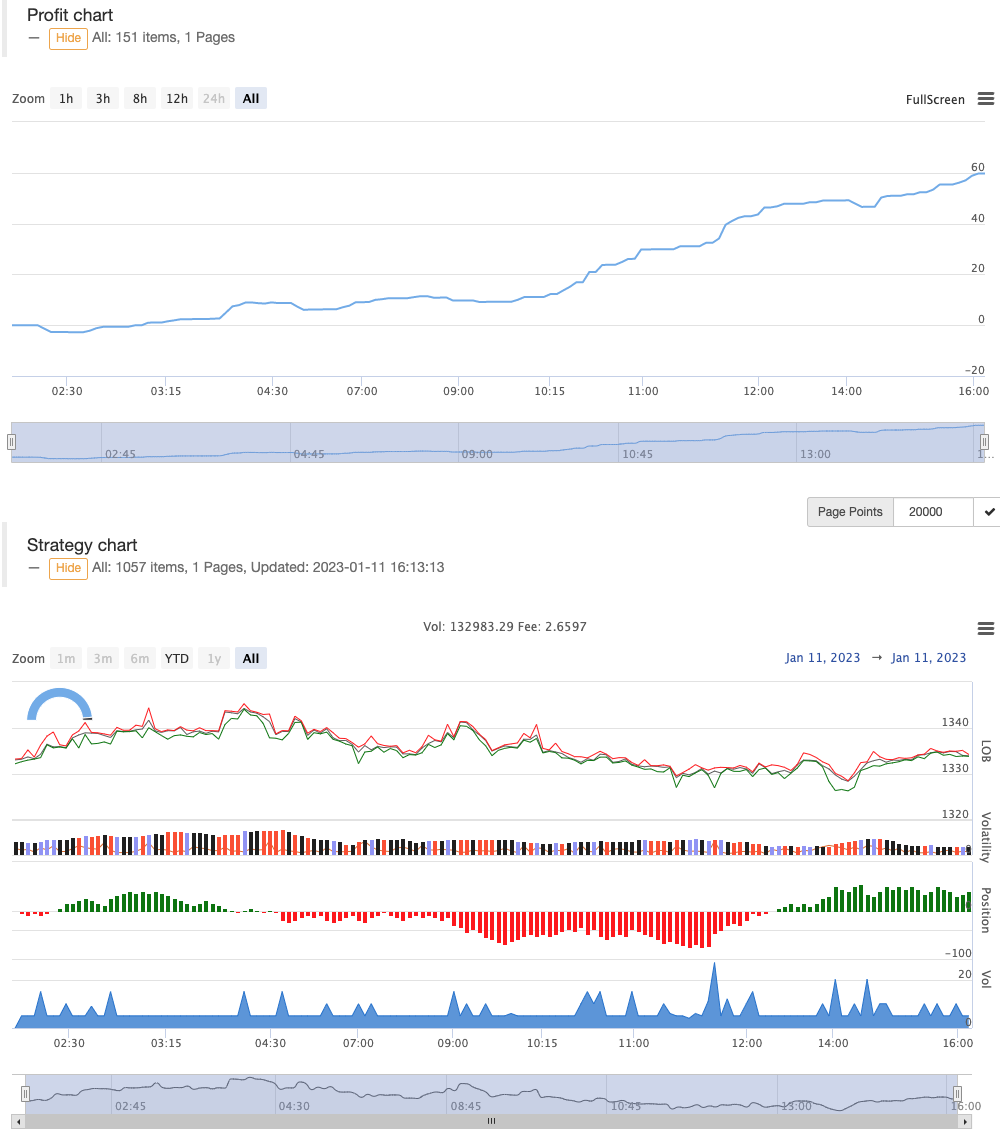

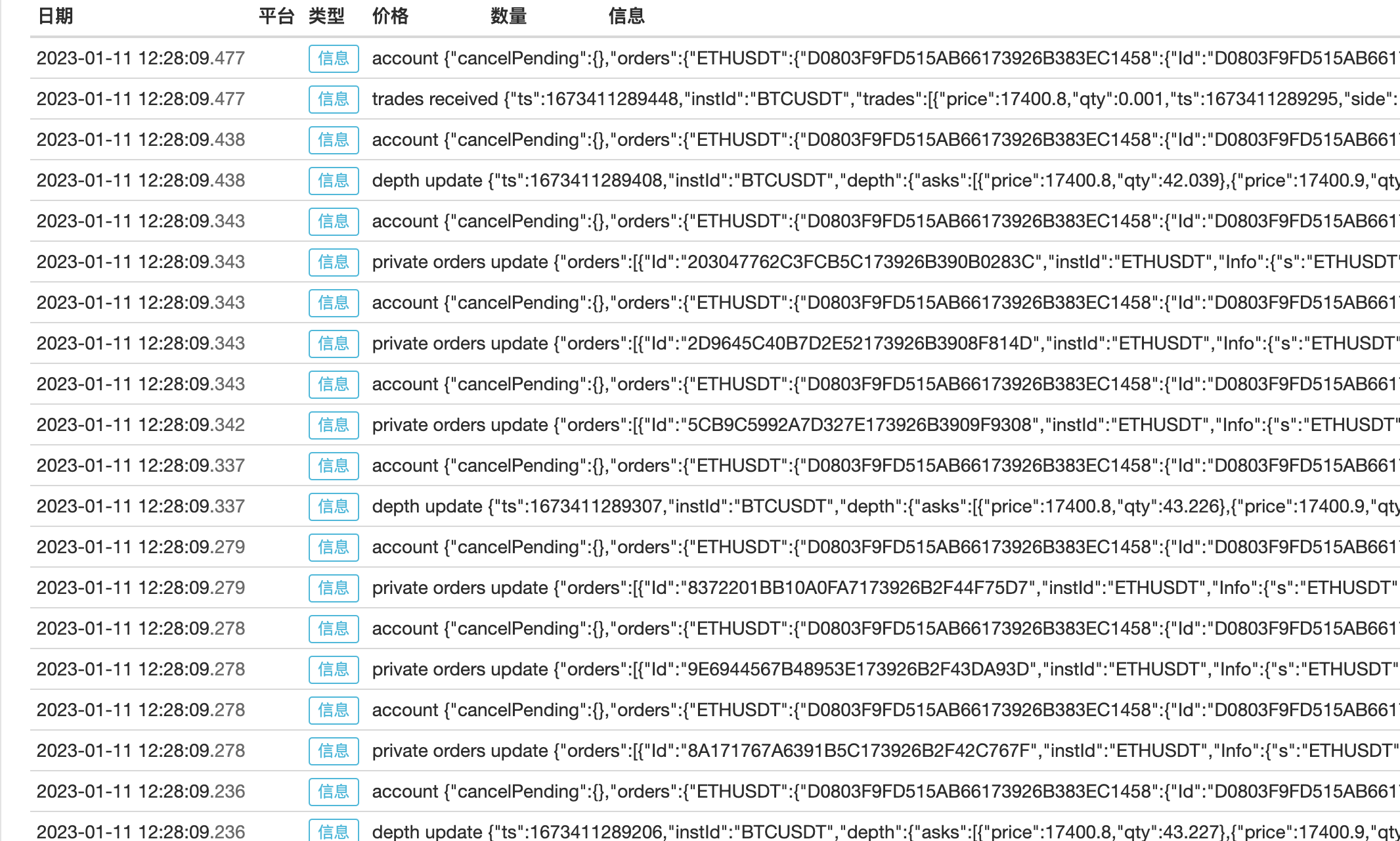

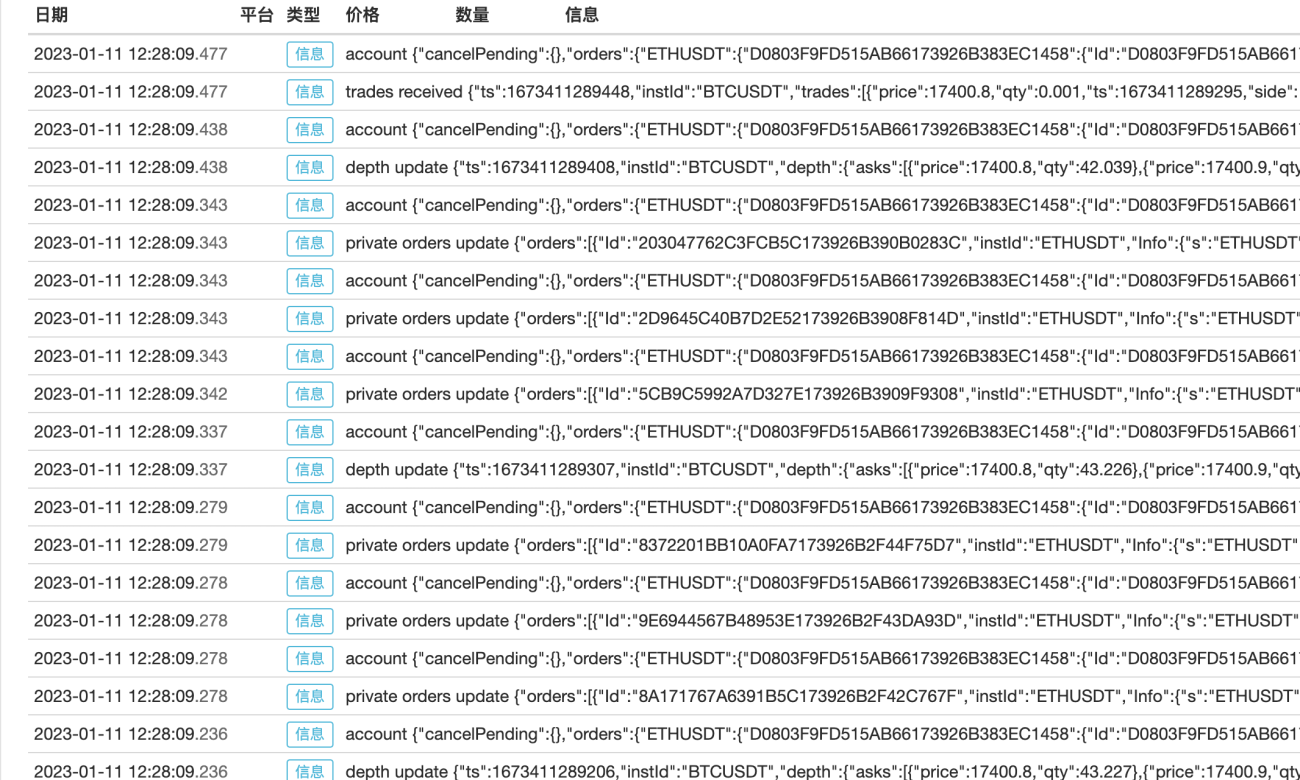

The running status is as follows, you can also subscribe to multiple symbols in the subscribe function

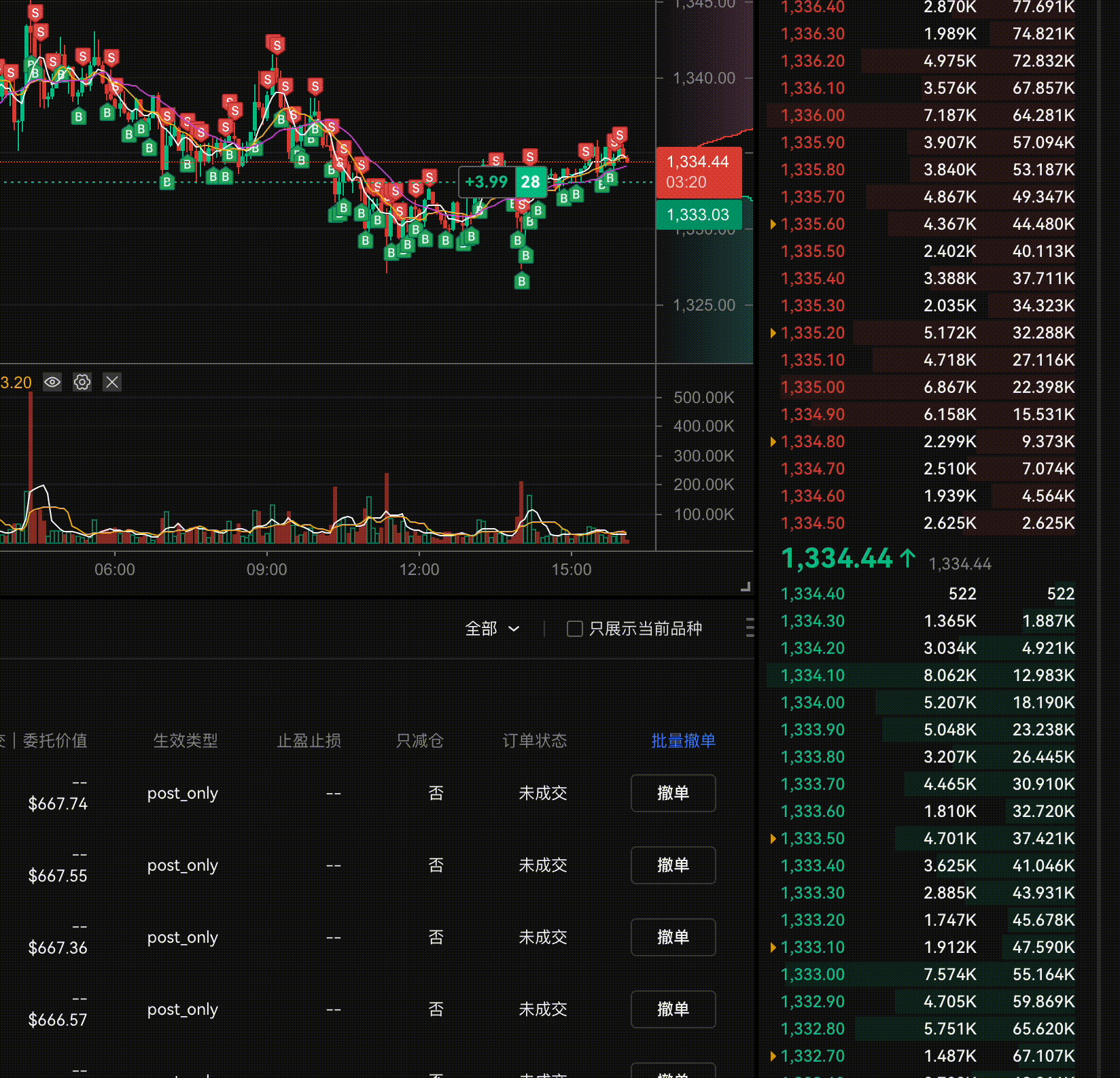

The following is the a common market maker robot for OKX and Binance based on this template



Source
JavaScript

/* jshint esversion: 6 */
// AccessKey and Phassphrase only need if OKX
$.NewWSS = function(e, onWSSLogin, onWSSTick, Debug, UseMargin, AccessKey, Passphrase) {
    function NewOKXWebSocketPrivate(ctx) {
        let self = {
            ws: null,
            isReadyDic: {},
            lastPing: 0,
            ctx: ctx,
            account: {
                orders: {},
Comment
All comments (10)

    好顶赞

    2 years ago

    Invalid request: request ID must be an unsigned integer报错不能跑了,

    3 years ago

    再试一下,可以了,币安订阅的ID是数字才可以导致的

    3 years ago

    Invalid request: request ID must be an unsigned integer ID格式好像有问题了

    3 years ago

    有没有显示出错行OK还是Binance ?

    3 years ago

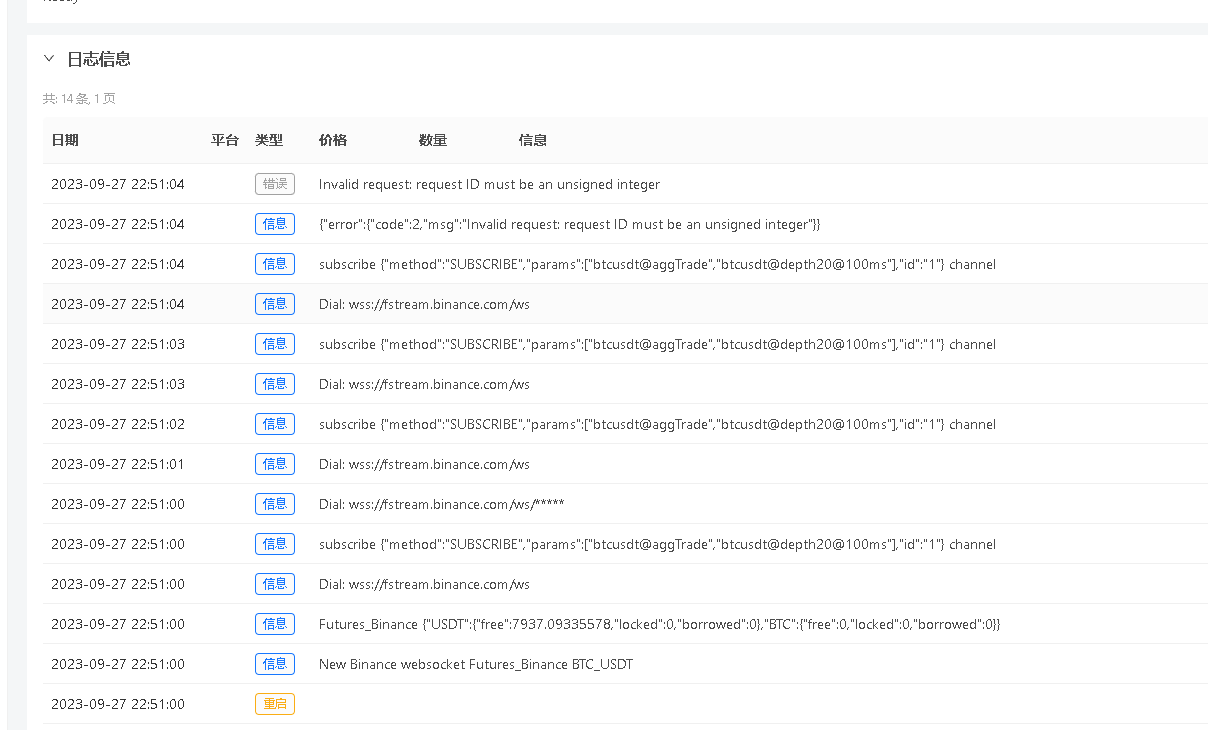

    binance合约报错信息Invalid request: request ID must be an unsigned integer 没有出错行 img

    3 years ago

    Debug这个设置false和true分别代表什么意思

    3 years ago

    能不能简单说下EventLoop函数的执行逻辑,我看api文档立面没有相关介绍

    4 years ago

    晚些会加到文档里去

    4 years ago

    Zero总牛🍺

    4 years ago
