该策略是一个基于经典三线突破形态的高级交易系统,通过整合ADX趋势确认指标和ATR动态止盈止损机制,提供了一个完整的交易解决方案。策略核心是识别三根连续同向K线后的突破形态,并结合趋势强度确认,实现精准的交易信号生成。
策略运作基于三个核心机制:首先是识别经典的三线突破形态,包括看涨形态(三根连续阴线后的阳线突破)和看跌形态(三根连续阳线后的阴线突破);其次使用ADX(平均趋向指标)进行趋势强度过滤,只有当ADX值超过设定阈值时才确认信号;最后利用ATR(真实波幅)动态计算止盈止损位置,实现风险管理的自适应性。策略在技术上通过精确的K线颜色判定和突破力度验证来保证信号质量。
这个策略通过将经典的三线突破形态与现代技术指标相结合,创造了一个兼具理论基础和实用性的交易系统。其核心优势在于多重信号确认机制和智能化风险管理,但使用时需要注意市场环境的适配性和参数优化问题。通过建议的优化方向,策略还有进一步提升的空间。

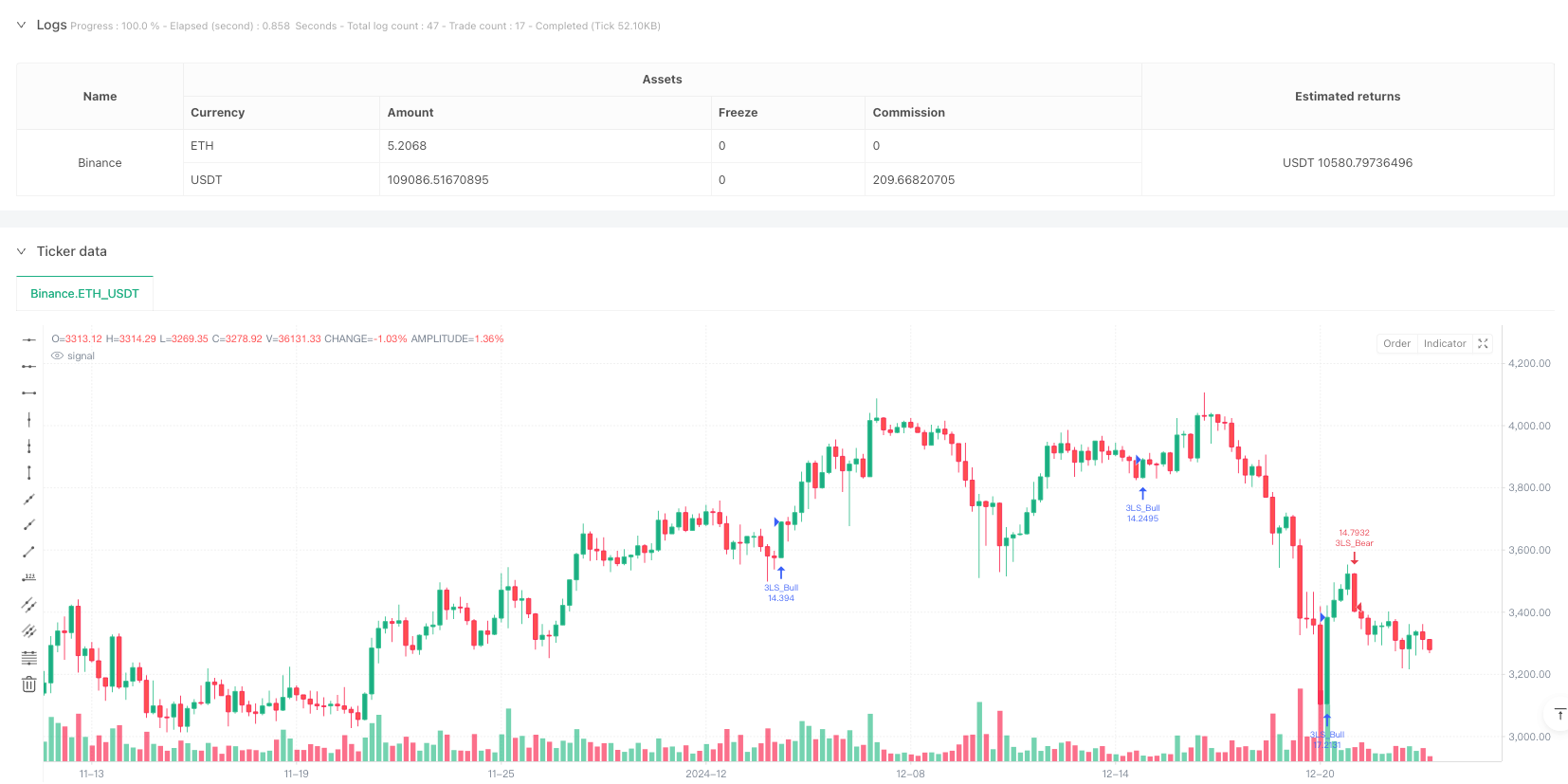

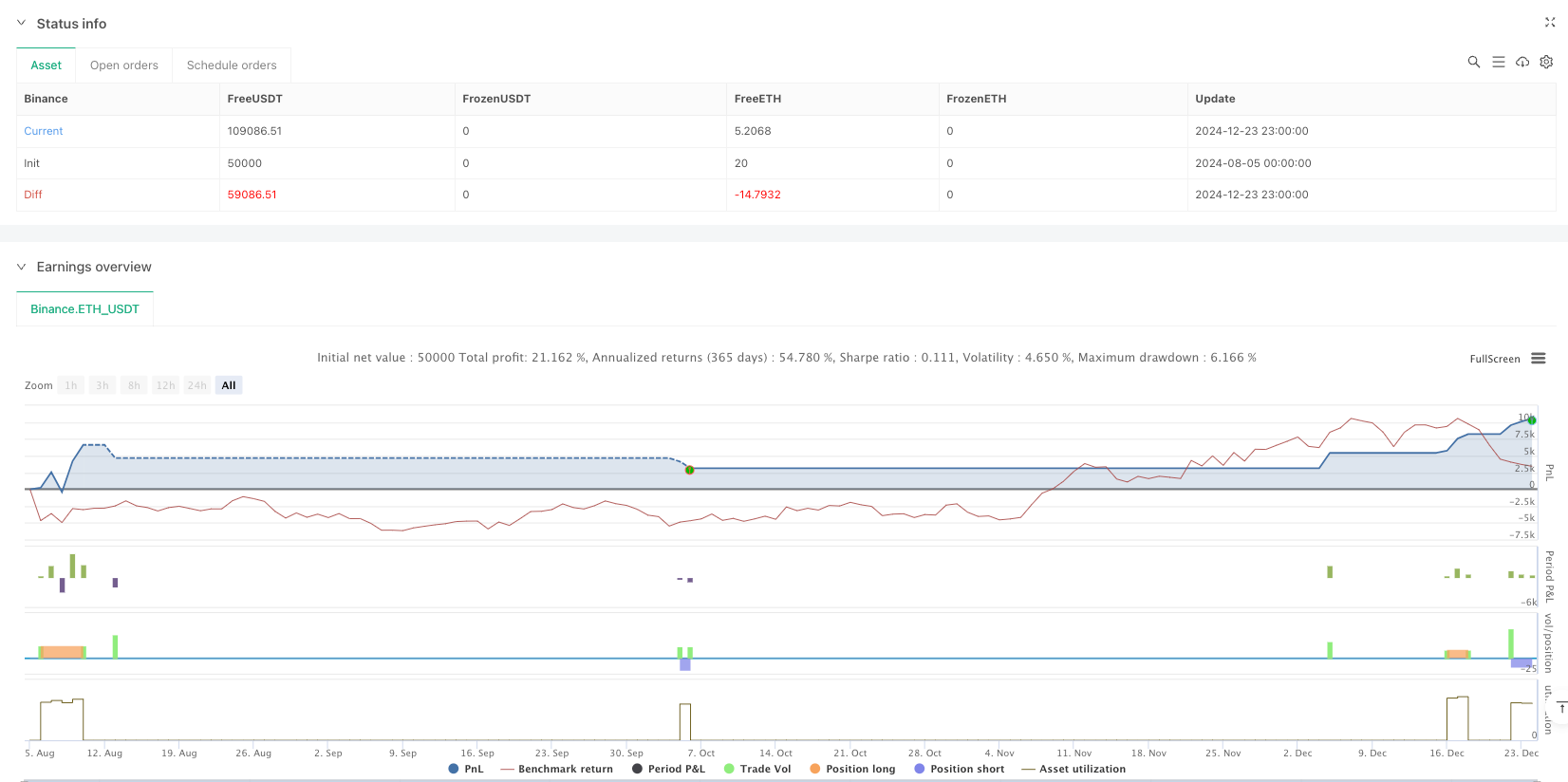

/*backtest
start: 2024-08-05 00:00:00
end: 2024-12-24 00:00:00
period: 5h
basePeriod: 5h
exchanges: [{"eid":"Binance","currency":"ETH_USDT"}]
*/
// Copyright ...
// Based on the TMA Overlay by Arty, converted to a simple strategy example.
// Pine Script v5
//@version=5
strategy(title='3 Line Strike [TTF] - Strategy with ATR and ADX Filter',
shorttitle='3LS Strategy [TTF]',
overlay=true,
initial_capital=100000,
default_qty_type=strategy.percent_of_equity,
default_qty_value=100,
pyramiding=0)
// -----------------------------------------------------------------------------
// INPUTS
// -----------------------------------------------------------------------------
// ATR and ADX Inputs
atrLength = input.int(title='ATR Length', defval=14, group='ATR & ADX')
adxLength = input.int(title='ADX Length', defval=14, group='ATR & ADX')
adxThreshold = input.float(title='ADX Threshold', defval=25, group='ATR & ADX')
// ### 3 Line Strike
showBear3LS = input.bool(title='Show Bearish 3 Line Strike', defval=true, group='3 Line Strike',
tooltip="Bearish 3 Line Strike (3LS-Bear) = 3 zelené sviečky, potom veľká červená sviečka (engulfing).")
showBull3LS = input.bool(title='Show Bullish 3 Line Strike', defval=true, group='3 Line Strike',
tooltip="Bullish 3 Line Strike (3LS-Bull) = 3 červené sviečky, potom veľká zelená sviečka (engulfing).")
// -----------------------------------------------------------------------------
// CALCULATIONS
// -----------------------------------------------------------------------------
// Calculate ATR
atr = ta.atr(atrLength)
// Calculate ADX components manually
tr = ta.tr(true)
plusDM = ta.change(high) > ta.change(low) and ta.change(high) > 0 ? ta.change(high) : 0
minusDM = ta.change(low) > ta.change(high) and ta.change(low) > 0 ? ta.change(low) : 0
smoothedPlusDM = ta.rma(plusDM, adxLength)
smoothedMinusDM = ta.rma(minusDM, adxLength)
smoothedTR = ta.rma(tr, adxLength)
plusDI = (smoothedPlusDM / smoothedTR) * 100
minusDI = (smoothedMinusDM / smoothedTR) * 100
dx = math.abs(plusDI - minusDI) / (plusDI + minusDI) * 100
adx = ta.rma(dx, adxLength)
// Helper Functions
getCandleColorIndex(barIndex) =>
int ret = na
if (close[barIndex] > open[barIndex])
ret := 1
else if (close[barIndex] < open[barIndex])
ret := -1
else
ret := 0
ret
isEngulfing(checkBearish) =>
sizePrevCandle = close[1] - open[1]
sizeCurrentCandle = close - open
isCurrentLargerThanPrevious = math.abs(sizeCurrentCandle) > math.abs(sizePrevCandle)
if checkBearish
isGreenToRed = (getCandleColorIndex(0) < 0) and (getCandleColorIndex(1) > 0)
isCurrentLargerThanPrevious and isGreenToRed
else
isRedToGreen = (getCandleColorIndex(0) > 0) and (getCandleColorIndex(1) < 0)
isCurrentLargerThanPrevious and isRedToGreen
isBearishEngulfing() => isEngulfing(true)
isBullishEngulfing() => isEngulfing(false)
is3LSBear() =>
is3LineSetup = (getCandleColorIndex(1) > 0) and (getCandleColorIndex(2) > 0) and (getCandleColorIndex(3) > 0)
is3LineSetup and isBearishEngulfing()
is3LSBull() =>
is3LineSetup = (getCandleColorIndex(1) < 0) and (getCandleColorIndex(2) < 0) and (getCandleColorIndex(3) < 0)
is3LineSetup and isBullishEngulfing()
// Signals
is3LSBearSig = is3LSBear() and adx > adxThreshold
is3LSBullSig = is3LSBull() and adx > adxThreshold
// Take Profit and Stop Loss
longTP = close + 2 * atr
longSL = close - 1 * atr
shortTP = close - 2 * atr
shortSL = close + 1 * atr
// -----------------------------------------------------------------------------
// STRATEGY ENTRY PRÍKAZY
// -----------------------------------------------------------------------------
if (showBull3LS and is3LSBullSig)
strategy.entry("3LS_Bull", strategy.long, comment="3LS Bullish")
strategy.exit("Exit Bull", from_entry="3LS_Bull", limit=longTP, stop=longSL)
if (showBear3LS and is3LSBearSig)
strategy.entry("3LS_Bear", strategy.short, comment="3LS Bearish")
strategy.exit("Exit Bear", from_entry="3LS_Bear", limit=shortTP, stop=shortSL)
