该策略是一个基于移动平均线的简单趋势跟随策略。它通过比较不同周期的移动平均线的大小关系来判断目前的趋势方向,以及判断趋势的持续时间。当短周期均线由下向上穿过长周期均线时做多,当短周期均线由上向下穿过长周期均线时做空。同时,策略还设定了止损点和止盈点来控制风险。
该策略使用4条不同周期的移动平均线:5日线、10日线、15日线和25日线。这4条均线被称为MA1、MA2、MA3和MA4。其中,MA1最短,MA4最长。
当MA1>MA2>MA3>MA4时,说明价格处于上升趋势,这时做多;当MA1
做多和做空的开仓条件还需要同时满足ATR止损过滤器,即ATR值要大于ATR的40周期简单移动平均,这可以避免价格震荡过小时发出错误信号。
该策略具有以下优势:
该策略也存在以下风险:
为了降低这些风险,可以适当优化参数,或增加其他过滤器条件来提高策略稳定性。
该策略的优化方向有:
该策略整体是一个较为简单的趋势跟随策略,通过移动平均线判断趋势方向,设定合理的止盈止损来控制风险水平。策略优化空间还很大,通过参数调整、增设过滤器等手段可以进一步提高策略稳定性和盈利能力。

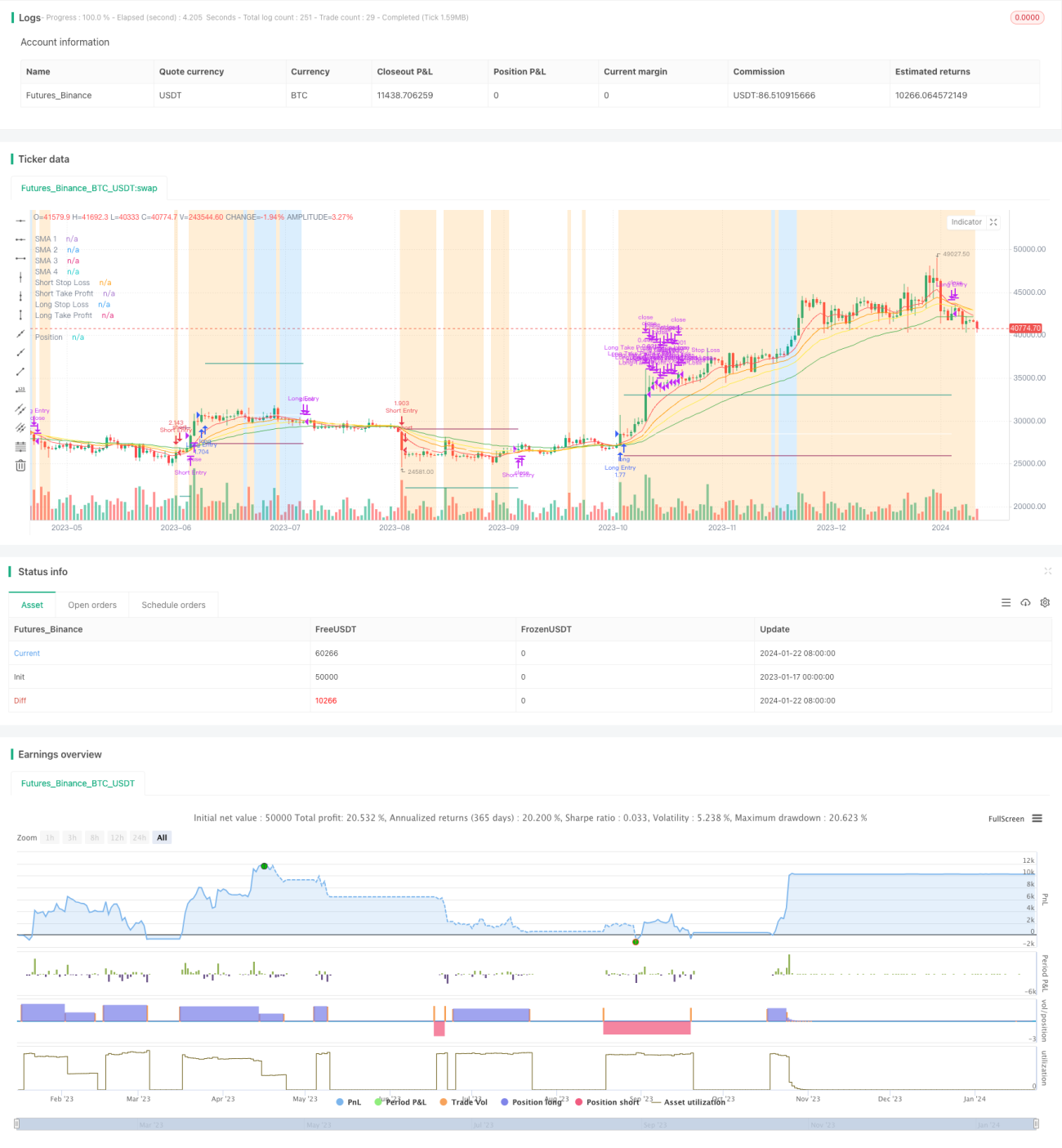

/*backtest
start: 2023-01-17 00:00:00
end: 2024-01-23 00:00:00
period: 1d
basePeriod: 1h
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/
// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © fpemehd
// @version=5
// # ========================================================================= #
// # | STRATEGY |
// # ========================================================================= #
strategy(title = 'MA Simple Strategy with SL & TP & ATR Filters',
shorttitle = 'MA Strategy',
overlay = true,
pyramiding = 0,
default_qty_type = strategy.percent_of_equity,
default_qty_value = 100,
commission_type = strategy.commission.percent,
commission_value = 0.1,
initial_capital = 100000,
max_lines_count = 150,
max_labels_count = 300)
// # ========================================================================= #
// # Inputs
// # ========================================================================= #
// 1. Time
i_start = input (defval = timestamp("20 Jan 1990 00:00 +0900"), title = "Start Date", tooltip = "Choose Backtest Start Date", inline = "Start Date", group = "Time" )
i_end = input (defval = timestamp("20 Dec 2030 00:00 +0900"), title = "End Date", tooltip = "Choose Backtest End Date", inline = "End Date", group = "Time" )
c_timeCond = true
// 2. Inputs for direction: Long? Short? Both?
i_longEnabled = input.bool(defval = true , title = "Long?", tooltip = "Enable Long Position Trade?", inline = "Long / Short", group = "Long / Short" )
i_shortEnabled = input.bool(defval = true , title = "Short?", tooltip = "Enable Short Position Trade?", inline = "Long / Short", group = "Long / Short" )
// 3. Use Filters? What Filters?
i_ATRFilterOn = input.bool(defval = true , title = "ATR Filter On?", tooltip = "ATR Filter On?", inline = "ATR Filter", group = "Filters")
i_ATRSMALen = input.int(defval = 40 , title = "SMA Length for ATR SMA", minval = 1 , maxval = 100000 , step = 1 , tooltip = "ATR should be bigger than this", inline = "ATR Filter", group = "Filters")
// 3. Shared inputs for Long and Short
//// 3-1. Inputs for Stop Loss Type: normal? or trailing?
//// If trailing, always trailing or trailing after take profit order executed?
i_useSLTP = input.bool(defval = true, title = "Enable SL & TP?", tooltip = "", inline = "Enable SL & TP & SL Type", group = "Shared Inputs")
i_tslEnabled = input.bool(defval = false , title = "Enable Trailing SL?", tooltip = "Enable Stop Loss & Take Profit? \n\Enable Trailing SL?", inline = "Enable SL & TP & SL Type", group = "Shared Inputs")
// i_tslAfterTP = input.bool(defval = true , title = "Enable Trailing SL after TP?", tooltip = "Enable Trailing SL after TP?", inline = "Trailing SL Execution", group = "Shared Inputs")
i_slType = input.string(defval = "ATR", title = "Stop Loss Type", options = ["Percent", "ATR"], tooltip = "Stop Loss based on %? ATR?", inline = "Stop Loss Type", group = "Shared Inputs")
i_slATRLen = input.int(defval = 14, title = "ATR Length", minval = 1 , maxval = 200 , step = 1, inline = "Stop Loss ATR", group = "Shared Inputs")
i_tpType = input.string(defval = "R:R", title = "Take Profit Type", options = ["Percent", "ATR", "R:R"], tooltip = "Take Profit based on %? ATR? R-R ratio?", inline = "Take Profit Type", group = "Shared Inputs")
//// 3-2. Inputs for Quantity
i_tpQuantityPerc = input.float(defval = 50, title = 'Take Profit Quantity %', minval = 0.0, maxval = 100, step = 1.0, tooltip = '% of position when tp target is met.', group = 'Shared Inputs')
// 4. Inputs for Long Stop Loss & Long Take Profit
i_slPercentLong = input.float(defval = 3, title = "SL Percent", tooltip = "", inline = "Percent > Long Stop Loss / Take Profit Percent", group = "Long Stop Loss / Take Profit")
i_tpPercentLong = input.float(defval = 3, title = "TP Percent", tooltip = "Long Stop Loss && Take Profit Percent?", inline = "Percent > Long Stop Loss / Take Profit Percent", group = "Long Stop Loss / Take Profit")
i_slATRMultLong = input.float(defval = 3, title = "SL ATR Multiplier", minval = 1 , maxval = 200 , step = 0.1, tooltip = "", inline = "Long Stop Loss / Take Profit ATR", group = "Long Stop Loss / Take Profit")
i_tpATRMultLong = input.float(defval = 3, title = "TP ATR Multiplier", minval = 1 , maxval = 200 , step = 0.1, tooltip = "ATR > Long Stop Loss && Take Profit ATR Multiplier? \n\Stop Loss = i_slATRMultLong * ATR (i_slATRLen) \n\Take Profit = i_tpATRMultLong * ATR (i_tpATRLen)", inline = "Long Stop Loss / Take Profit ATR", group = "Long Stop Loss / Take Profit")
i_tpRRratioLong = input.float(defval = 1.8, title = "R:R Ratio", minval = 0.1 , maxval = 200 , step = 0.1, tooltip = "R:R Ratio > Risk Reward Ratio? It will automatically set Take Profit % based on Stop Loss", inline = "R:R Ratio", group = "Long Stop Loss / Take Profit")
// 5. Inputs for Short Stop Loss & Short Take Profit
i_slPercentShort = input.float(defval = 3, title = "SL Percent", tooltip = "", inline = "Percent > Short Stop Loss / Take Profit Percent", group = "Short Stop Loss / Take Profit")
i_tpPercentShort = input.float(defval = 3, title = "TP Percent", tooltip = "Short Stop Loss && Take Profit Percent?", inline = "Percent > Short Stop Loss / Take Profit Percent", group = "Short Stop Loss / Take Profit")
i_slATRMultShort = input.float(defval = 3, title = "SL ATR Multiplier", minval = 1 , maxval = 200 , step = 0.1, tooltip = "", inline = "ATR > Short Stop Loss / Take Profit ATR", group = "Short Stop Loss / Take Profit")
i_tpATRMultShort = input.float(defval = 3, title = "TP ATR Multiplier", minval = 1 , maxval = 200 , step = 0.1, tooltip = "ATR > Short Stop Loss && Take Profit ATR Multiplier? \n\Stop Loss = i_slATRMultShort * ATR (i_slATRLen) \n\Take Profit = i_tpATRMultShort * ATR (i_tpATRLen)", inline = "ATR > Short Stop Loss / Take Profit ATR", group = "Short Stop Loss / Take Profit")
i_tpRRratioShort = input.float(defval = 1.8, title = "R:R Ratio", minval = 0.1 , maxval = 200 , step = 0.1, tooltip = "R:R Ratio > Risk Reward Ratio? It will automatically set Take Profit % based on Stop Loss", inline = "R:R Ratio", group = "Short Stop Loss / Take Profit")
// 6. Inputs for logic
i_MAType = input.string(defval = "RMA", title = "MA Type", options = ["SMA", "EMA", "WMA", "HMA", "RMA", "VWMA", "SWMA", "ALMA", "VWAP"], tooltip = "Choose MA Type", inline = "MA Type", group = 'Strategy')
i_MA1Len = input.int(defval = 5, title = 'MA 1 Length', minval = 1, inline = 'MA Length', group = 'Strategy')
i_MA2Len = input.int(defval = 10, title = 'MA 2 Length', minval = 1, inline = 'MA Length', group = 'Strategy')
i_MA3Len = input.int(defval = 15, title = 'MA 3 Length', minval = 1, inline = 'MA Length', group = 'Strategy')
i_MA4Len = input.int(defval = 25, title = 'MA 4 Length', minval = 1, inline = 'MA Length', group = 'Strategy')
i_ALMAOffset = input.float(defval = 0.7 , title = "ALMA Offset Value", tooltip = "The Value of ALMA offset", inline = "ALMA Input", group = 'Strategy')
i_ALMASigma = input.float(defval = 7 , title = "ALMA Sigma Value", tooltip = "The Value of ALMA sigma", inline = "ALMA Input", group = 'Strategy')
// # ========================================================================= #
// # Entry, Close Logic
// # ========================================================================= #
bool i_ATRFilter = ta.atr(length = i_slATRLen) >= ta.sma(source = ta.atr(length = i_slATRLen), length = i_ATRSMALen) ? true : false
// calculate Technical Indicators for the Logic
getMAValue (source, length, almaOffset, almaSigma) =>
switch i_MAType
'SMA' => ta.sma(source = source, length = length)
'EMA' => ta.ema(source = source, length = length)
'WMA' => ta.wma(source = source, length = length)
'HMA' => ta.hma(source = source, length = length)
'RMA' => ta.rma(source = source, length = length)
'SWMA' => ta.swma(source = source)
'ALMA' => ta.alma(series = source, length = length, offset = almaOffset, sigma = almaSigma)
'VWMA' => ta.vwma(source = source, length = length)
'VWAP' => ta.vwap(source = source)
=> na
float c_MA1 = getMAValue(close, i_MA1Len, i_ALMAOffset, i_ALMASigma)
float c_MA2 = getMAValue(close, i_MA2Len, i_ALMAOffset, i_ALMASigma)
float c_MA3 = getMAValue(close, i_MA3Len, i_ALMAOffset, i_ALMASigma)
float c_MA4 = getMAValue(close, i_MA4Len, i_ALMAOffset, i_ALMASigma)
// Logic: 정배열 될 떄 들어가
var ma1Color = color.new(color.red, 0)
plot(series = c_MA1, title = 'SMA 1', color = ma1Color, linewidth = 1, style = plot.style_line)
var ma2Color = color.new(color.orange, 0)
plot(series = c_MA2, title = 'SMA 2', color = ma2Color, linewidth = 1, style = plot.style_line)
var ma3Color = color.new(color.yellow, 0)
plot(series = c_MA3, title = 'SMA 3', color = ma3Color, linewidth = 1, style = plot.style_line)
var ma4Color = color.new(color.green, 0)
plot(series = c_MA4, title = 'SMA 4', color = ma4Color, linewidth = 1, style = plot.style_line)
bool openLongCond = (c_MA1 >= c_MA2 and c_MA2 >= c_MA3 and c_MA3 >= c_MA4)
bool openShortCond = (c_MA1 <= c_MA2 and c_MA2 <= c_MA3 and c_MA3 <= c_MA4)
bool openLong = i_longEnabled and openLongCond and (not i_ATRFilterOn or i_ATRFilter)
bool openShort = i_shortEnabled and openShortCond and (not i_ATRFilterOn or i_ATRFilter)
openLongCondColor = openLongCond ? color.new(color = color.blue, transp = 80) : na
bgcolor(color = openLongCondColor)
ATRFilterColor = i_ATRFilter ? color.new(color = color.orange, transp = 80) : na
bgcolor(color = ATRFilterColor)
bool enterLong = openLong and not (strategy.opentrades.size(strategy.opentrades-1) > 0)
bool enterShort = openShort and not (strategy.opentrades.size(strategy.opentrades-1) < 0)
bool closeLong = i_longEnabled and (c_MA1[1] >= c_MA2[1] and c_MA2[1] >= c_MA3[1] and c_MA3[1] >= c_MA4[1]) and not (c_MA1 >= c_MA2 and c_MA2 >= c_MA3 and c_MA3 >= c_MA4)
bool closeShort = i_shortEnabled and (c_MA1[1] <= c_MA2[1] and c_MA2[1] <= c_MA3[1] and c_MA3[1] <= c_MA4[1]) and not (c_MA1 <= c_MA2 and c_MA2 <= c_MA3 and c_MA3 <= c_MA4)
// # ========================================================================= #
// # Position, Status Conrtol
// # ========================================================================= #
// longisActive: New Long || Already Long && not closeLong, short is the same
bool longIsActive = enterLong or strategy.opentrades.size(strategy.opentrades - 1) > 0 and not closeLong
bool shortIsActive = enterShort or strategy.opentrades.size(strategy.opentrades - 1) < 0 and not closeShort
// before longTPExecution: no trailing SL && after longTPExecution: trailing SL starts
// longTPExecution qunatity should be less than 100%
bool longTPExecuted = false
bool shortTPExecuted = false
// # ========================================================================= #
// # Long Stop Loss Logic
// # ========================================================================= #
float openAtr = ta.valuewhen(enterLong or enterShort, ta.atr(i_slATRLen), 0)
f_getLongSL (source) =>
switch i_slType
'Percent' => source * (1 - (i_slPercentLong/100))
'ATR' => source - i_slATRMultLong * openAtr
=> na
var float c_longSLPrice = na
c_longSLPrice := if (longIsActive)
if (enterLong)
f_getLongSL(close)
else
c_stopPrice = f_getLongSL(i_tslEnabled ? high : strategy.opentrades.entry_price(trade_num = strategy.opentrades - 1))
math.max(c_stopPrice, nz(c_longSLPrice[1]))
else
na
// # ========================================================================= #
// # Short Stop Loss Logic
// # ========================================================================= #
f_getShortSL (source) =>
switch i_slType
'Percent' => source * (1 + (i_slPercentShort)/100)
'ATR' => source + i_slATRMultShort * openAtr
=> na
var float c_shortSLPrice = na
c_shortSLPrice := if (shortIsActive)
if (enterShort)
f_getShortSL (close)
else
c_stopPrice = f_getShortSL(i_tslEnabled ? low : strategy.opentrades.entry_price(strategy.opentrades - 1))
math.min(c_stopPrice, nz(c_shortSLPrice[1], 999999.9))
else
na
// # ========================================================================= #
// # Long Take Profit Logic
// # ========================================================================= #
f_getLongTP () =>
switch i_tpType
'Percent' => close * (1 + (i_tpPercentLong/100))
'ATR' => close + i_tpATRMultLong * openAtr
'R:R' => close + i_tpRRratioLong * (close - f_getLongSL(close))
=> na
var float c_longTPPrice = na
c_longTPPrice := if (longIsActive and not longTPExecuted)
if (enterLong)
f_getLongTP()
else
nz(c_longTPPrice[1], f_getLongTP())
else
na
longTPExecuted := strategy.opentrades.size(strategy.opentrades - 1) > 0 and (longTPExecuted[1] or strategy.opentrades.size(strategy.opentrades - 1) < strategy.opentrades.size(strategy.opentrades - 1)[1] or strategy.opentrades.size(strategy.opentrades - 1)[1] == 0 and high >= c_longTPPrice)
// # ========================================================================= #
// # Short Take Profit Logic
// # ========================================================================= #
f_getShortTP () =>
switch i_tpType
'Percent' => close * (1 - (i_tpPercentShort/100))
'ATR' => close - i_tpATRMultShort * openAtr
'R:R' => close - i_tpRRratioShort * (close - f_getLongSL(close))
=> na
var float c_shortTPPrice = na
c_shortTPPrice := if (shortIsActive and not shortTPExecuted)
if (enterShort)
f_getShortTP()
else
nz(c_shortTPPrice[1], f_getShortTP())
else
na
shortTPExecuted := strategy.opentrades.size(strategy.opentrades - 1) < 0 and (shortTPExecuted[1] or strategy.opentrades.size(strategy.opentrades - 1) > strategy.opentrades.size(strategy.opentrades - 1)[1] or strategy.opentrades.size(strategy.opentrades - 1)[1] == 0 and low <= c_shortTPPrice)
// # ========================================================================= #
// # Make Orders
// # ========================================================================= #
if (c_timeCond)
if (enterLong)
strategy.entry(id = "Long Entry", direction = strategy.long , comment = 'Long(' + syminfo.ticker + '): Started', alert_message = 'Long(' + syminfo.ticker + '): Started')
if (enterShort)
strategy.entry(id = "Short Entry", direction = strategy.short , comment = 'Short(' + syminfo.ticker + '): Started', alert_message = 'Short(' + syminfo.ticker + '): Started')
if (closeLong)
strategy.close(id = 'Long Entry', comment = 'Close Long', alert_message = 'Long: Closed at market price')
if (closeShort)
strategy.close(id = 'Short Entry', comment = 'Close Short', alert_message = 'Short: Closed at market price')
if (longIsActive and i_useSLTP)
strategy.exit(id = 'Long Take Profit / Stop Loss', from_entry = 'Long Entry', qty_percent = i_tpQuantityPerc, limit = c_longTPPrice, stop = c_longSLPrice, alert_message = 'Long(' + syminfo.ticker + '): Take Profit or Stop Loss executed')
strategy.exit(id = 'Long Stop Loss', from_entry = 'Long Entry', stop = c_longSLPrice, alert_message = 'Long(' + syminfo.ticker + '): Stop Loss executed')
if (shortIsActive and i_useSLTP)
strategy.exit(id = 'Short Take Profit / Stop Loss', from_entry = 'Short Entry', qty_percent = i_tpQuantityPerc, limit = c_shortTPPrice, stop = c_shortSLPrice, alert_message = 'Short(' + syminfo.ticker + '): Take Profit or Stop Loss executed')
strategy.exit(id = 'Short Stop Loss', from_entry = 'Short Entry', stop = c_shortSLPrice, alert_message = 'Short(' + syminfo.ticker + '): Stop Loss executed')
// # ========================================================================= #
// # Plot
// # ========================================================================= #
var posColor = color.new(color.white, 0)
plot(series = strategy.opentrades.entry_price(strategy.opentrades - 1), title = 'Position', color = posColor, linewidth = 1, style = plot.style_linebr)
var stopLossColor = color.new(color.maroon, 0)
plot(series = c_longSLPrice, title = 'Long Stop Loss', color = stopLossColor, linewidth = 1, style = plot.style_linebr, offset = 1)
plot(series = c_shortSLPrice, title = 'Short Stop Loss', color = stopLossColor, linewidth = 1, style = plot.style_linebr, offset = 1)
longTPExecutedColor = longTPExecuted ? color.new(color = color.green, transp = 80) : na
//bgcolor(color = longTPExecutedColor)
shortTPExecutedColor = shortTPExecuted ? color.new(color = color.red, transp = 80) : na
//bgcolor(color = shortTPExecutedColor)
// isPositionOpenedColor = strategy.opentrades.size(strategy.opentrades-1) != 0 ? color.new(color = color.yellow, transp = 90) : na
// bgcolor(color = isPositionOpenedColor)
var takeProfitColor = color.new(color.teal, 0)
plot(series = c_longTPPrice, title = 'Long Take Profit', color = takeProfitColor, linewidth = 1, style = plot.style_linebr, offset = 1)
plot(series = c_shortTPPrice, title = 'Short Take Profit', color = takeProfitColor, linewidth = 1, style = plot.style_linebr, offset = 1)
