关于策略图表的副图问题
标题：关于策略图表的副图问题 内容： python语言，能否创建多个副图？希望不同的计算指标显示在不同的副图上，便于分析。目前策略图表只有一个副图，通过plot画在副图上的不同计算指标，都显示在一张副图上，由于各指标值域范围相差极大，各曲线可观性很差。
Related Recommendations
Inventor Quant Workflow FAQ (Continuously Updated)Financial Magic Zone Global KOL RecruitmentFAQ Summary (Updating...)PINE Language Introductory Tutorial of FMZ QuantPrimary Tutorial of Strategy Writing with FMZ Quant Trading Platform (Must Read)Getting Started with FMZ Quant Trading Platform (Must Read)
Comment
All comments (4)

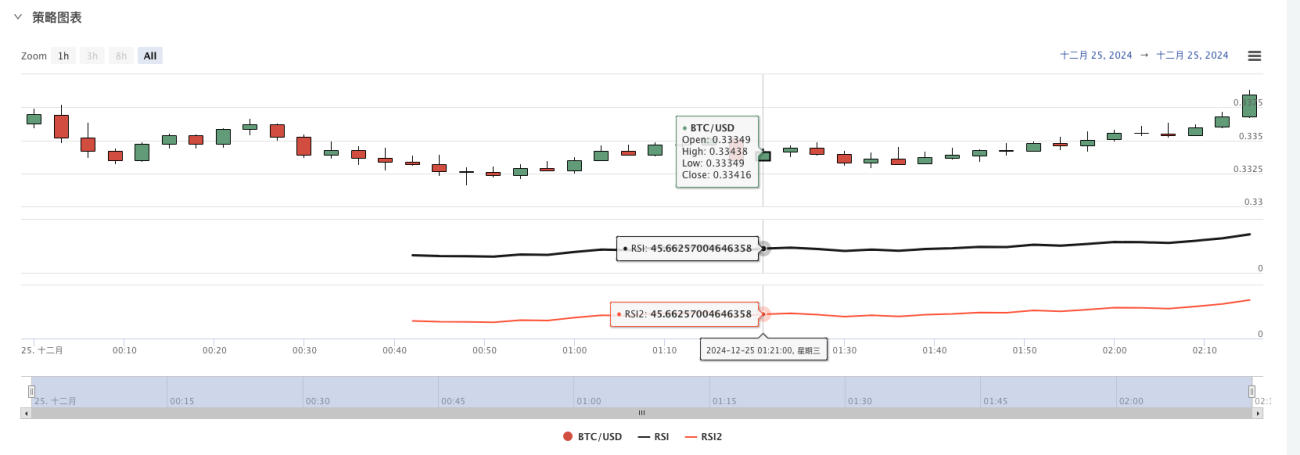

您可以参考这样设计。
javascript
var chartCfg = {
tooltip: {
xDateFormat: '%Y-%m-%d %H:%M:%S, %A'
},
legend: {
enabled: true,
},
plotOptions: {
candlestick: {
color: '#d75442',
upColor: '#6ba583'
}
},
rangeSelector: {
buttons: [{
type: 'hour',
count: 1,
text: '1h'
}, {
type: 'hour',
count: 3,
text: '3h'
}, {
type: 'hour',
count: 8,
text: '8h'
}, {
type: 'all',
text: 'All'
}],
selected: 2,
inputEnabled: true
},
series: [{
type: 'candlestick',
name: 'BTC/USD',
id: 'primary',
data: [],
}, {
type: 'line',
name: 'RSI',
data: [],
yAxis: 1, // 绑定副图1
color: '#1a1a1c',
}, {
type: 'line',
name: 'RSI2',
data: [],
yAxis: 2, // 绑定副图2
color: '#ff5733',
}],
yAxis: [{
height: '50%', // 主图
resize: {
enabled: true
},
}, {
top: '55%', // 副图1（RSI）
height: '20%',
offset: 0,
opposite: true,
}, {
top: '80%', // 副图2（RSI2），避免与副图1重叠
height: '20%',
offset: 0,
opposite: true,
}],
};
function main() {
let c = Chart(chartCfg);
let preBarTime = 0;
while (true) {
var records = exchange.GetRecords();
if (records.length <= 0) {
continue;
}
var rsi = TA.RSI(records, 14);
for (let i = 0; i < records.length; i++) {
if (records[i].Time > preBarTime) {
if (i != 0) {
c.add(0, [records[i - 1].Time, records[i - 1].Open, records[i - 1].High, records[i - 1].Low, records[i - 1].Close], -1); // OHLC
c.add(1, [records[i - 1].Time, rsi[i - 1]], -1); // RSI
c.add(2, [records[i - 1].Time, rsi[i - 1]], -1); // RSI
}
c.add(0, [records[i].Time, records[i].Open, records[i].High, records[i].Low, records[i].Close]); // OHLC
c.add(1, [records[i].Time, rsi[i]]); // RSI
c.add(2, [records[i].Time, rsi[i]]); // RSI
preBarTime = records[i].Time;
} else if (records[i].Time == preBarTime) {
c.add(0, [records[i].Time, records[i].Open, records[i].High, records[i].Low, records[i].Close], -1); // OHLC
c.add(1, [records[i].Time, rsi[i]], -1); // RSI
c.add(2, [records[i].Time, rsi[i]], -1); // RSI
}
}
c.update(chartCfg)
Sleep(1000)
}
}
