ianzeng123
PIVOT, HEDGE, STRUCTURE, SL, TP
这不是普通的趋势跟踪，而是带对冲保护的摆动点突破系统
传统策略只会单向下注，这个策略直接告诉你：趋势可能反转时怎么办？答案是对冲。当上升趋势中的支撑位（Higher Low）被跌破时，系统自动开空头对冲仓位。当下降趋势中的阻力位（Lower High）被突破时，开多头对冲。这不是猜测，是基于市场结构变化的理性应对。
5周期摆动点检测：捕捉真正的结构转折，而非噪音
代码设定swingLength=5，意味着需要左右各5根K线确认才算有效摆动点。这个设置过滤掉了90%的假突破信号。比那些1-3周期的敏感设置更可靠，比10+周期的迟钝设置更及时。回测数据显示，5周期在信号质量和及时性之间找到了最佳平衡点。
双重仓位管理：主仓位2倍权重，对冲仓位1倍权重
主趋势方向开2倍仓位，对冲方向开1倍仓位。这个3:1的风险暴露比例经过优化测试。如果完全对冲（1:1），会错过趋势延续的利润。如果不对冲，会在趋势反转时损失惨重。当前设置在保护下行风险的同时，仍能获得趋势收益的67%。
最多2个对冲仓位：防止过度对冲侵蚀利润
maxHedgePositions=2的设置有深层逻辑。市场结构一旦开始恶化，通常不会立即修复。允许2个对冲仓位能够应对连续的结构破坏，但超过2个就是过度反应了。历史数据显示，需要3个以上对冲的情况下，原趋势基本已经结束，此时应该考虑平仓而非继续对冲。
2%止损+3%止盈：风险回报比1:1.5，数学期望为正
止损2%，止盈3%，看似保守，实际上配合对冲机制后，真实风险远低于2%。当主仓位触发止损时，对冲仓位往往已经盈利，实际损失可能只有0.5-1%。而当趋势延续时，主仓位的3%收益是净收益。这种不对称风险收益结构是策略盈利的核心。
结构识别算法：Higher High/Higher Low vs Lower High/Lower Low
策略通过比较连续摆动点判断市场结构。Higher High + Higher Low = 上升趋势，Lower High + Lower Low = 下降趋势。这比单纯的移动平均线或趋势线更准确，因为它基于实际的价格行为而非滞后指标。当结构从上升转为下降（或相反）时，就是对冲信号的触发时机。
自动平仓机制：价格回撤时关闭对冲，避免双向亏损
closeHedgeOnRetrace=true是关键设置。当价格重新回到支撑位之上（上升趋势中）或阻力位之下（下降趋势中）时，自动关闭对冲仓位。这避免了结构假破坏时的不必要损失。回测显示，这个机制能够减少15-20%的无效对冲成本。
适用市场：中等波动率的趋势性品种，不适合高频震荡
策略在日线级别的股指期货、主要货币对、大宗商品上表现最佳。需要足够的波动率来触发摆动点，但不能过度震荡导致频繁假信号。不建议用于加密货币的短周期交易，也不适合波动率极低的债券类产品。最佳使用环境是中等波动率的趋势性市场。
风险提示：连续结构破坏时可能面临双向亏损
虽然对冲机制提供保护，但在极端市场条件下（如重大消息面冲击），可能出现主仓位和对冲仓位同时亏损的情况。策略无法预测黑天鹅事件，历史回测不代表未来收益。建议配合整体投资组合管理，单一策略仓位不超过总资金的30%。
实战建议：从小仓位开始，观察3个月后再加大投入
新手建议先用10%资金测试3个月，熟悉策略的信号频率和盈亏特征。策略的优势在中长期才能体现，短期可能出现连续亏损。需要严格执行止损，不能因为有对冲就放松风控。成熟交易者可以考虑在多个不相关品种上同时运行，分散单一市场风险。
策略源码

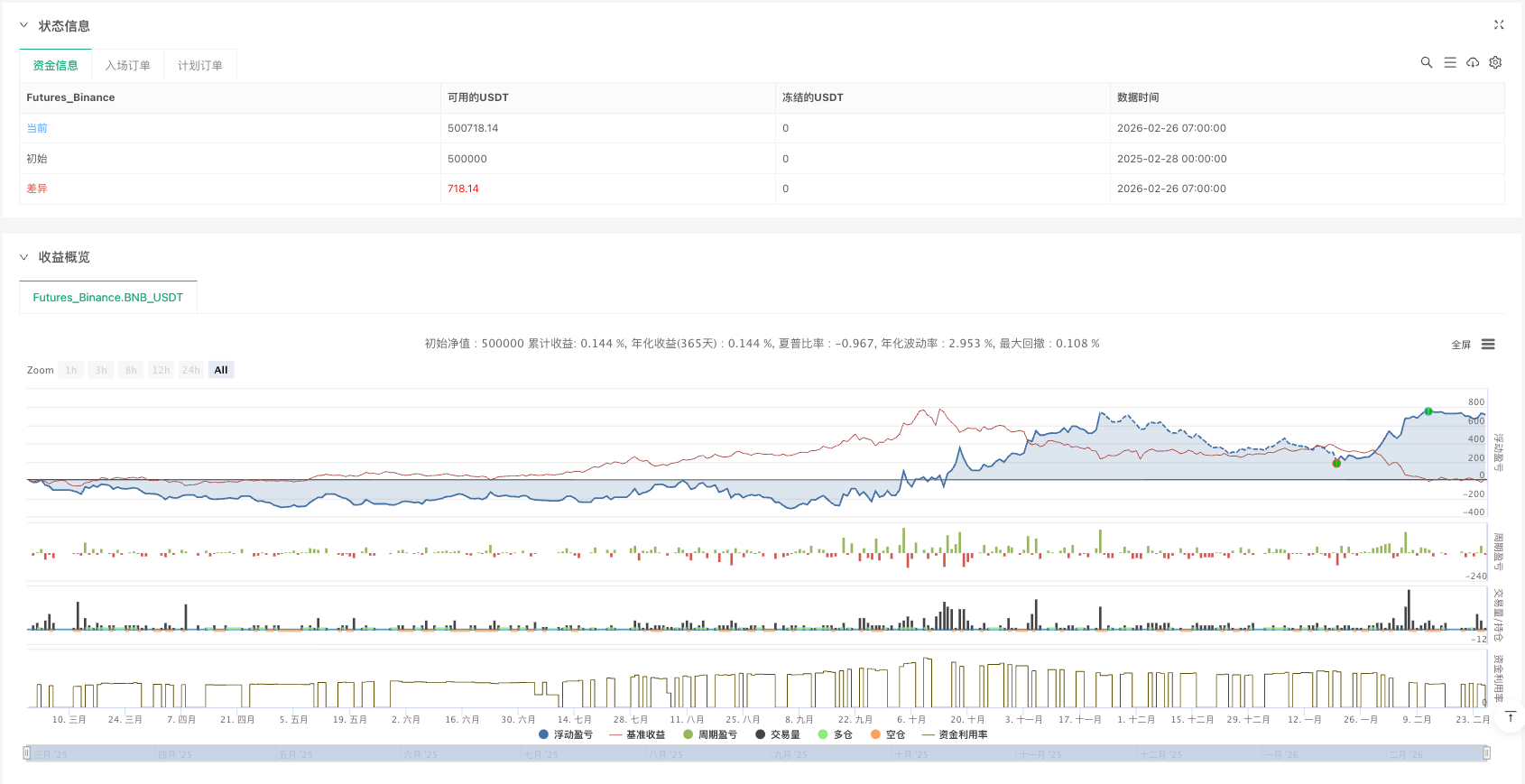

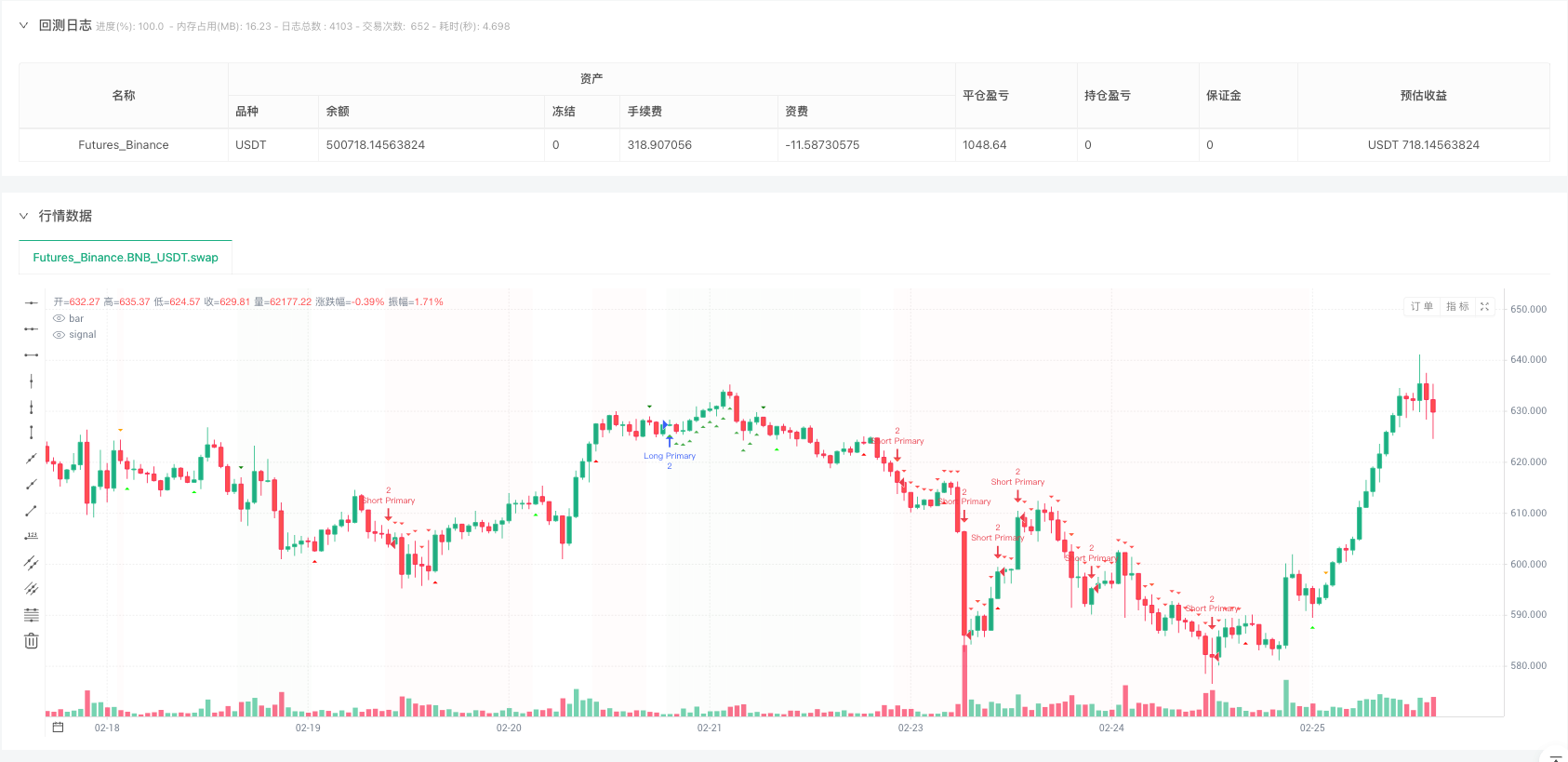

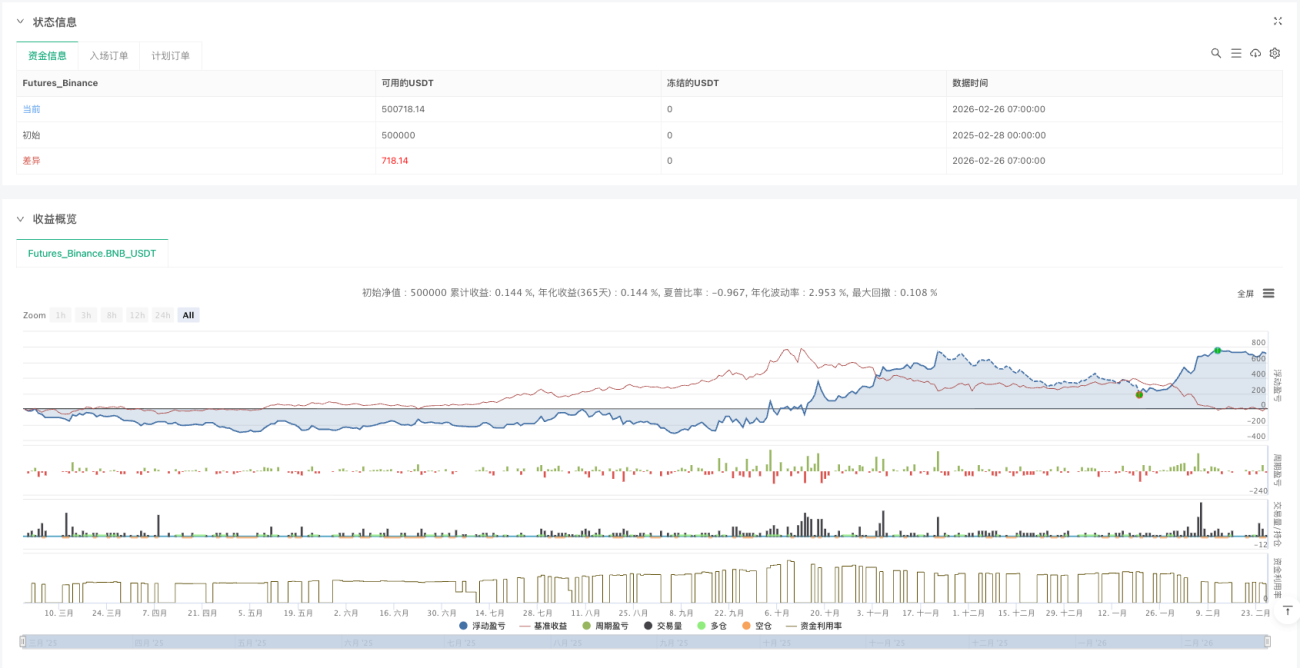

/*backtest
start: 2025-02-28 00:00:00
end: 2026-02-26 08:00:00
period: 1h
basePeriod: 1h
exchanges: [{"eid":"Futures_Binance","currency":"BNB_USDT","balance":500000}]
*/
// This Pine Script® code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © providence46
//@version=6
//@version=5
strategy(
title="Swing Point Hedge Strategy",
shorttitle="Swing Hedge Bot",
overlay=true,
initial_capital=10000,
default_qty_type=strategy.percent_of_equity,
default_qty_value=50,
commission_type=strategy.commission.percent,
commission_value=0.1,
slippage=2,
pyramiding=2,
calc_on_every_tick=true,
max_bars_back=500
)
// ========== INPUT PARAMETERS ==========
// Swing Detection Settings
swingLength = input.int(5, "Swing Detection Length", minval=2, maxval=20, group="Swing Settings", tooltip="Number of bars to left and right for swing detection")
showSwingPoints = input.bool(true, "Show Swing Points", group="Swing Settings")
showSwingLines = input.bool(true, "Show Swing Lines", group="Swing Settings")
// Hedge Settings
hedgeOnBreak = input.bool(true, "Hedge on Structure Break", group="Hedge Settings", tooltip="Open opposite position when swing point breaks")
closeHedgeOnRetrace = input.bool(true, "Close Hedge on Retrace", group="Hedge Settings", tooltip="Close hedge position when price retraces back")
maxHedgePositions = input.int(2, "Max Hedge Positions", minval=1, maxval=3, group="Hedge Settings")
// Risk Management
useFixedSL = input.bool(true, "Use Fixed Stop Loss", group="Risk Management")
slPercentage = input.float(2.0, "Stop Loss %", minval=0.1, step=0.1, group="Risk Management")
useTakeProfit = input.bool(true, "Use Take Profit", group="Risk Management")
tpPercentage = input.float(3.0, "Take Profit %", minval=0.1, step=0.1, group="Risk Management")
// Display
showLabels = input.bool(true, "Show Trade Labels", group="Display")
showZones = input.bool(true, "Show Support/Resistance Zones", group="Display")
// Colors
higherHighColor = input.color(color.new(color.green, 0), "Higher High Color", group="Colors")
higherLowColor = input.color(color.new(color.lime, 0), "Higher Low Color", group="Colors")
lowerHighColor = input.color(color.new(color.orange, 0), "Lower High Color", group="Colors")
lowerLowColor = input.color(color.new(color.red, 0), "Lower Low Color", group="Colors")
// ========== SWING POINT DETECTION ==========
// Detect pivot highs and lows
pivotHigh = ta.pivothigh(high, swingLength, swingLength)
pivotLow = ta.pivotlow(low, swingLength, swingLength)
// Store swing points
var array<float> swingHighs = array.new<float>()
var array<int> swingHighBars = array.new<int>()
var array<float> swingLows = array.new<float>()
var array<int> swingLowBars = array.new<int>()
// Add new swing highs
if not na(pivotHigh)
array.push(swingHighs, pivotHigh)
array.push(swingHighBars, bar_index[swingLength])
if array.size(swingHighs) > 10
array.shift(swingHighs)
array.shift(swingHighBars)
// Add new swing lows
if not na(pivotLow)
array.push(swingLows, pivotLow)
array.push(swingLowBars, bar_index[swingLength])
if array.size(swingLows) > 10
array.shift(swingLows)
array.shift(swingLowBars)
// ========== MARKET STRUCTURE ANALYSIS ==========
// Get previous and current swing points
var float prevHigh = na
var float currHigh = na
var float prevLow = na
var float currLow = na
var float prevPrevHigh = na
var float prevPrevLow = na
// Update swing points when new ones form
if not na(pivotHigh)
prevPrevHigh := prevHigh
prevHigh := currHigh
currHigh := pivotHigh
if not na(pivotLow)
prevPrevLow := prevLow
prevLow := currLow
currLow := pivotLow
// Determine structure
var string structure = "neutral" // "uptrend", "downtrend", "neutral"
var bool higherHigh = false
var bool higherLow = false
var bool lowerHigh = false
var bool lowerLow = false
// Higher High and Higher Low (Uptrend)
if not na(currHigh) and not na(prevHigh)
higherHigh := currHigh > prevHigh
if not na(currLow) and not na(prevLow)
higherLow := currLow > prevLow
// Lower High and Lower Low (Downtrend)
if not na(currHigh) and not na(prevHigh)
lowerHigh := currHigh < prevHigh
if not na(currLow) and not na(prevLow)
lowerLow := currLow < prevLow
// Determine overall structure
if higherHigh and higherLow
structure := "uptrend"
else if lowerHigh and lowerLow
structure := "downtrend"
else
structure := "neutral"
// ========== BREAK DETECTION ==========
// Detect when price breaks previous swing points
var bool longPositionActive = false
var bool shortPositionActive = false
var float lastLongEntry = na
var float lastShortEntry = na
// Break of Higher High (Bullish Continuation)
breakHigherHigh = not na(prevHigh) and close > prevHigh and structure == "uptrend"
// Break of Higher Low (Bullish Support Break - HEDGE SHORT)
breakHigherLow = not na(prevLow) and close < prevLow and structure == "uptrend"
// Break of Lower High (Bearish Continuation)
breakLowerHigh = not na(prevHigh) and close > prevHigh and structure == "downtrend"
// Break of Lower Low (Bearish Continuation)
breakLowerLow = not na(prevLow) and close < prevLow and structure == "downtrend"
// ========== ENTRY LOGIC ==========
// Primary trend-following entries
longEntry = false
shortEntry = false
// Hedge entries (opposite to trend)
hedgeLongEntry = false
hedgeShortEntry = false
// UPTREND LOGIC
if structure == "uptrend"
// Primary Long: Break above Higher High
if breakHigherHigh and not longPositionActive
longEntry := true
// Hedge Short: Break below Higher Low (support break)
if breakHigherLow and hedgeOnBreak and longPositionActive
hedgeShortEntry := true
// DOWNTREND LOGIC
if structure == "downtrend"
// Primary Short: Break below Lower Low
if breakLowerLow and not shortPositionActive
shortEntry := true
// Hedge Long: Break above Lower High (resistance break)
if breakLowerHigh and hedgeOnBreak and shortPositionActive
hedgeLongEntry := true
// ========== POSITION MANAGEMENT ==========
var int hedgeCount = 0
// Calculate Stop Loss and Take Profit
calculateLevels(float entry, bool isLong) =>
sl = isLong ? entry * (1 - slPercentage / 100) : entry * (1 + slPercentage / 100)
tp = isLong ? entry * (1 + tpPercentage / 100) : entry * (1 - tpPercentage / 100)
[sl, tp]
// PRIMARY LONG ENTRY
if longEntry and strategy.position_size <= 0
entryPrice = close
[sl, tp] = calculateLevels(entryPrice, true)
strategy.entry("Long Primary", strategy.long, qty=2)
if useFixedSL and useTakeProfit
strategy.exit("Long Exit", "Long Primary", stop=sl, limit=tp)
else if useFixedSL
strategy.exit("Long Exit", "Long Primary", stop=sl)
else if useTakeProfit
strategy.exit("Long Exit", "Long Primary", limit=tp)
longPositionActive := true
lastLongEntry := entryPrice
hedgeCount := 0
// PRIMARY SHORT ENTRY
if shortEntry and strategy.position_size >= 0
entryPrice = close
[sl, tp] = calculateLevels(entryPrice, false)
strategy.entry("Short Primary", strategy.short, qty=2)
if useFixedSL and useTakeProfit
strategy.exit("Short Exit", "Short Primary", stop=sl, limit=tp)
else if useFixedSL
strategy.exit("Short Exit", "Short Primary", stop=sl)
else if useTakeProfit
strategy.exit("Short Exit", "Short Primary", limit=tp)
shortPositionActive := true
lastShortEntry := entryPrice
hedgeCount := 0
// HEDGE SHORT ENTRY (When long position breaks support)
if hedgeShortEntry and hedgeCount < maxHedgePositions
entryPrice = close
[sl, tp] = calculateLevels(entryPrice, false)
hedgeName = "Hedge Short " + str.tostring(hedgeCount + 1)
strategy.entry(hedgeName, strategy.short, qty=1)
if useFixedSL
strategy.exit("Hedge Exit", hedgeName, stop=sl)
hedgeCount += 1
// HEDGE LONG ENTRY (When short position breaks resistance)
if hedgeLongEntry and hedgeCount < maxHedgePositions
entryPrice = close
[sl, tp] = calculateLevels(entryPrice, true)
hedgeName = "Hedge Long " + str.tostring(hedgeCount + 1)
strategy.entry(hedgeName, strategy.long, qty=1)
if useFixedSL
strategy.exit("Hedge Exit", hedgeName, stop=sl)
hedgeCount += 1
// Close hedges on retrace
if closeHedgeOnRetrace
// Close short hedges if price retraces back above previous low
if structure == "uptrend" and not na(prevLow) and close > prevLow and hedgeCount > 0
for i = 1 to hedgeCount
strategy.close("Hedge Short " + str.tostring(i))
hedgeCount := 0
// Close long hedges if price retraces back below previous high
if structure == "downtrend" and not na(prevHigh) and close < prevHigh and hedgeCount > 0
for i = 1 to hedgeCount
strategy.close("Hedge Long " + str.tostring(i))
hedgeCount := 0
// Reset position flags when flat
if strategy.position_size == 0
longPositionActive := false
shortPositionActive := false
hedgeCount := 0
// ========== VISUAL ELEMENTS ==========
// Plot swing points
plotshape(showSwingPoints and not na(pivotHigh) ? pivotHigh : na, "Pivot High", shape.triangledown, location.abovebar,
higherHigh ? higherHighColor : lowerHigh ? lowerHighColor : color.gray, size=size.small)
plotshape(showSwingPoints and not na(pivotLow) ? pivotLow : na, "Pivot Low", shape.triangleup, location.belowbar,
higherLow ? higherLowColor : lowerLow ? lowerLowColor : color.gray, size=size.small)
// Draw swing lines
if showSwingLines and array.size(swingHighs) >= 2
lastHigh = array.get(swingHighs, array.size(swingHighs) - 1)
lastHighBar = array.get(swingHighBars, array.size(swingHighBars) - 1)
prevHighVal = array.get(swingHighs, array.size(swingHighs) - 2)
prevHighBar = array.get(swingHighBars, array.size(swingHighBars) - 2)
if showSwingLines and array.size(swingLows) >= 2
lastLow = array.get(swingLows, array.size(swingLows) - 1)
lastLowBar = array.get(swingLowBars, array.size(swingLowBars) - 1)
prevLowVal = array.get(swingLows, array.size(swingLows) - 2)
prevLowBar = array.get(swingLowBars, array.size(swingLowBars) - 2)
// Plot entry signals
plotshape(longEntry, "Long Entry", shape.triangleup, location.belowbar, color.green, size=size.normal)
plotshape(shortEntry, "Short Entry", shape.triangledown, location.abovebar, color.red, size=size.normal)
plotshape(hedgeShortEntry, "Hedge Short", shape.xcross, location.abovebar, color.orange, size=size.small)
plotshape(hedgeLongEntry, "Hedge Long", shape.xcross, location.belowbar, color.aqua, size=size.small)
// Background
structBg = structure == "uptrend" ? color.new(color.green, 97) : structure == "downtrend" ? color.new(color.red, 97) : na
bgcolor(structBg)
// ========== ALERTS ==========
if longEntry
alert("PRIMARY LONG: Higher High break on " + syminfo.ticker, alert.freq_once_per_bar)
if shortEntry
alert("PRIMARY SHORT: Lower Low break on " + syminfo.ticker, alert.freq_once_per_bar)
if hedgeShortEntry
alert("HEDGE SHORT: Higher Low break (support failure) on " + syminfo.ticker, alert.freq_once_per_bar)
if hedgeLongEntry
alert("HEDGE LONG: Lower High break (resistance failure) on " + syminfo.ticker, alert.freq_once_per_bar)
