EMA MACD Momentum Tracking Strategy

Author: ChaoZhang, Date: 2024-09-26 15:31:33
Tags: EMAMACDATR


Overview

The EMA MACD Momentum Tracking Strategy is a quantitative trading approach that combines the Exponential Moving Average (EMA) and Moving Average Convergence Divergence (MACD) indicators. Applied to 5-minute charts, this strategy aims to capture short-term price trends and momentum shifts to achieve a high win rate. By leveraging the quick responsiveness of EMAs and the momentum identification capabilities of MACD, the strategy can generate timely trading signals as market trends evolve.

Strategy Principles

The core principles of this strategy are based on two key technical indicators: EMA and MACD. First, two EMAs of different periods (9 and 21) are used to identify price trends. When the fast EMA crosses above the slow EMA, it’s considered a potential bullish signal; the reverse indicates a bearish signal. Second, the MACD indicator is used to confirm price momentum. When the MACD line crosses above the signal line, it confirms a buy signal; the opposite confirms a sell signal.

The strategy also incorporates dynamic stop-loss and take-profit settings using the Average True Range (ATR) indicator to adapt to market volatility. This approach allows for adjusting risk management parameters under different market conditions, enhancing the strategy’s adaptability and robustness.

Strategy Advantages

  1. High Flexibility: Combines short-term and medium-term indicators to quickly adapt to market changes.
  2. Signal Confirmation: Uses multiple indicator crossovers for confirmation, increasing signal reliability.
  3. Dynamic Risk Management: Adjusts stop-loss and take-profit levels through ATR, adapting to different market environments.
  4. Suitable for High-Frequency Trading: Application on 5-minute charts allows for capturing short-term market opportunities.
  5. Customizability: Strategy parameters can be optimized for different markets and personal preferences.

Strategy Risks

  1. Overtrading: May generate frequent false signals in choppy markets, leading to excessive trading.
  2. Trend Dependency: May underperform in range-bound markets, requiring additional filters.
  3. Parameter Sensitivity: Strategy performance highly depends on the chosen EMA and MACD parameters.
  4. Slippage Risk: May face higher slippage risk in markets with lower liquidity.
  5. Systemic Risk: Failure to consider fundamental factors may lead to poor performance during major news events.

Strategy Optimization Directions

  1. Introduce Volatility Filter: Adjust strategy parameters or pause trading during high volatility periods.
  2. Add Trend Strength Indicator: Such as ADX, to avoid trading in weak trend markets.
  3. Implement Time Filtering: Avoid trading during highly volatile market opening and closing periods.
  4. Optimize Parameter Selection: Use machine learning algorithms to dynamically adjust EMA and MACD parameters.
  5. Integrate Fundamental Analysis: Consider the impact of important economic data releases on the strategy.

Summary

The EMA MACD Momentum Tracking Strategy is a quantitative trading method that combines technical analysis with dynamic risk management. By integrating multiple technical indicators, the strategy aims to capture short-term market trends and momentum shifts while using ATR for risk control. Although the strategy demonstrates good adaptability and potential, caution is needed to address risks such as overtrading and changing market conditions. Through continuous optimization and the introduction of additional filtering mechanisms, this strategy has the potential to maintain stable performance across various market environments. Traders should use the strategy prudently and continuously monitor its performance based on individual risk tolerance and market insights.

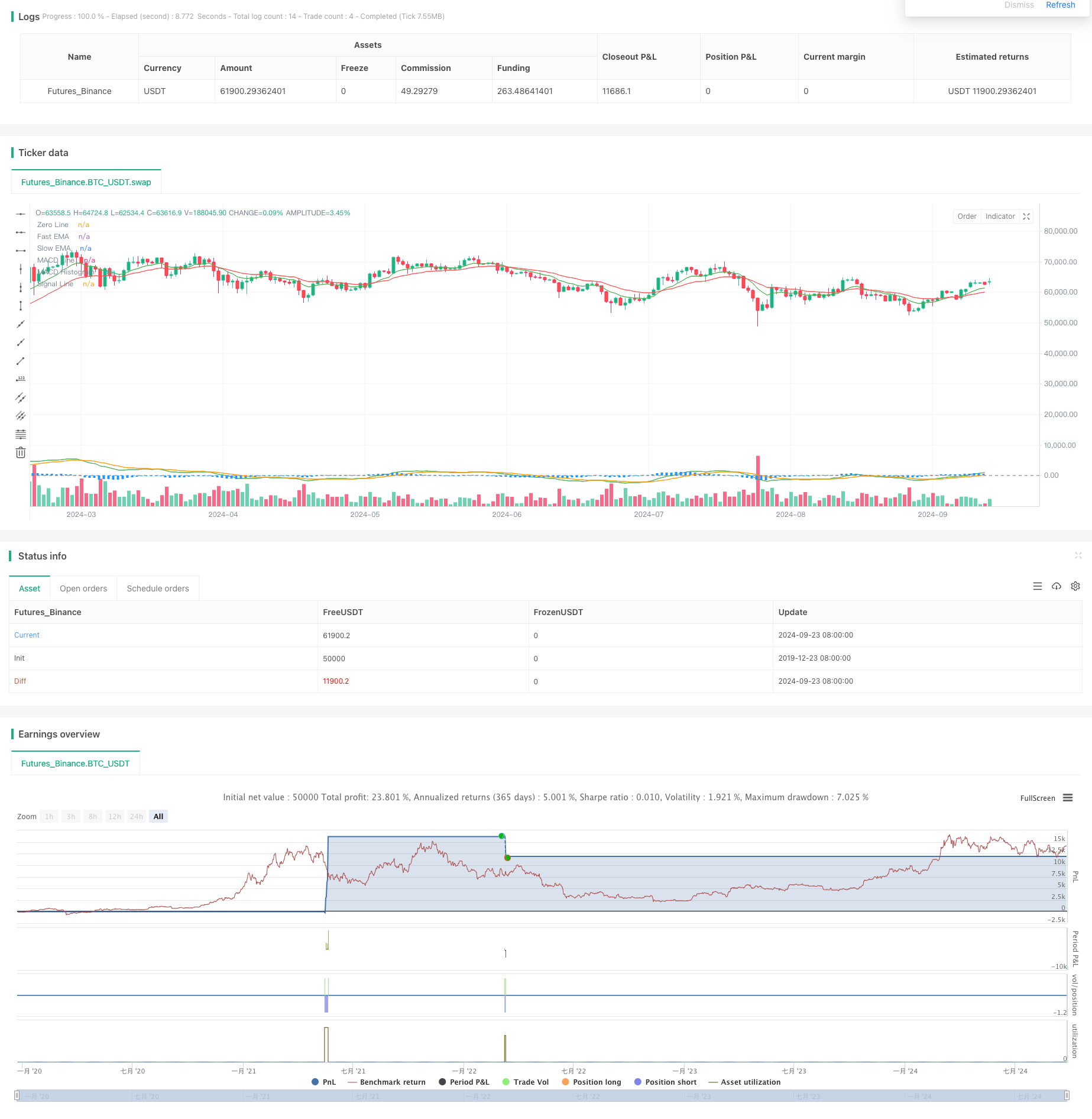

/*backtest
start: 2019-12-23 08:00:00
end: 2024-09-24 08:00:00
period: 1d
basePeriod: 1d
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/

//@version=5
strategy("EMA and MACD Strategy for 5-Min Chart", overlay=true)

// Inputs for EMAs
fastLength = input.int(9, title="Fast EMA Length")
slowLength = input.int(21, title="Slow EMA Length")

// Inputs for MACD
macdShortLength = input.int(12, title="MACD Short Length")
macdLongLength = input.int(26, title="MACD Long Length")
macdSignalLength = input.int(9, title="MACD Signal Length")

// Inputs for ATR
atrLength = input.int(14, title="ATR Length")
atrMultiplier = input.float(1.5, title="ATR Multiplier")

// Calculate EMAs
fastEMA = ta.ema(close, fastLength)
slowEMA = ta.ema(close, slowLength)

// Calculate MACD
[macdLine, signalLine, macdHist] = ta.macd(close, macdShortLength, macdLongLength, macdSignalLength)

// Calculate ATR
atrValue = ta.atr(atrLength)

// Plot EMAs
plot(fastEMA, color=color.green, title="Fast EMA")
plot(slowEMA, color=color.red, title="Slow EMA")

// Plot MACD
hline(0, "Zero Line", color=color.gray)
plot(macdLine - signalLine, color=color.blue, title="MACD Histogram", style=plot.style_columns)
plot(macdLine, color=color.green, title="MACD Line")
plot(signalLine, color=color.orange, title="Signal Line")

// Entry conditions
longCondition = ta.crossover(fastEMA, slowEMA) and ta.crossover(macdLine, signalLine)
shortCondition = ta.crossunder(fastEMA, slowEMA) and ta.crossunder(macdLine, signalLine)

// Execute trades
if (longCondition)
    strategy.entry("Long", strategy.long)

if (shortCondition)
    strategy.entry("Short", strategy.short)

// Dynamic Stop Loss and Take Profit based on ATR
longSL = strategy.position_avg_price - atrValue * atrMultiplier
longTP = strategy.position_avg_price + atrValue * atrMultiplier * 2
shortSL = strategy.position_avg_price + atrValue * atrMultiplier
shortTP = strategy.position_avg_price - atrValue * atrMultiplier * 2

if (strategy.position_size > 0)
    strategy.exit("Take Profit/Stop Loss", "Long", stop=longSL, limit=longTP)

if (strategy.position_size < 0)
    strategy.exit("Take Profit/Stop Loss", "Short", stop=shortSL, limit=shortTP)

// Alert conditions
alertcondition(longCondition, title="Long Alert", message="Long Entry Signal")
alertcondition(shortCondition, title="Short Alert", message="Short Entry Signal")
