高级交易模式识别与动态风险管理策略

策略概述

高级交易模式识别与动态风险管理策略是一个融合了精确的吞没形态识别技术与动态风险管理系统的量化交易策略。该策略核心在于通过高级的数学验证方法精确识别市场中的吞没形态，并结合50周期指数移动平均线(EMA)作为趋势过滤器，确保交易方向与主导市场趋势保持一致。策略通过深入分析蜡烛图形态、交易量确认和波动性过滤等多重技术指标，筛选出高概率的交易信号，同时应用基于斐波那契水平的动态止损和获利目标，实现智能风险管理。

策略原理

该策略的运作原理基于几个关键组件的协同工作：

趋势识别系统：使用50周期EMA作为主要趋势指标。价格位于EMA之上被识别为上升趋势，适合做多；价格位于EMA之下被识别为下降趋势，适合做空。这确保交易始终顺应市场主导方向。
高级吞没形态识别：策略检测增强版的吞没形态，要求当前蜡烛完全”吞没”前一根蜡烛，并通过数学验证确保形态质量。系统会分析：
- 当前蜡烛体相对于前一蜡烛体的比率(最小吞没比率)
- 蜡烛上下影线与实体的比例(最大影线比率)
- 当前蜡烛的总体大小与平均真实范围(ATR)的关系
多重过滤机制：
- 交易量过滤：确保交易量超过平均值的特定倍数
- 波动性过滤：通过ATR确认市场波动性达到合适的交易条件
- 影线质量控制：限制蜡烛上下影线大小，提高信号质量
动态风险管理：
- 止损计算：支持基于斐波那契水平、固定金额或ATR倍数的多种止损策略
- 获利目标：可使用固定风险回报比或斐波那契水平设置目标
- 自动计算交易费用，确保策略在实际交易环境中的可行性

策略优势

通过对代码的深入分析，该策略展现出以下显著优势：

精确的入场时机：通过结合趋势、形态和多重确认指标，策略能够识别市场中具有统计学优势的高质量入场点，避免了单一指标可能带来的虚假信号。
自适应风险管理：不同于固定参数的传统策略，该策略的风险管理系统会根据当前市场条件动态调整，使用斐波那契水平或ATR值计算止损和获利目标，更好地适应不同市场环境。
完整的可视化支持：策略提供全面的图表标记和信息面板，包括入场信号、止损/获利水平、当前趋势状态和实时P&L跟踪，帮助交易者直观理解市场状况和策略表现。
高度可定制性：策略提供丰富的参数设置，包括EMA长度、吞没比率、风险回报比等，使交易者可以根据个人风险偏好和不同市场条件调整策略表现。
综合交易费用考量：策略内置交易佣金计算，这是许多交易系统常常忽视的重要因素，确保回测结果更接近实际交易环境。

策略风险

尽管该策略具有多重优势，但仍存在以下潜在风险和局限性：

市场环境依赖性：策略在趋势明确的市场中表现最佳，而在横盘整理或高波动无方向性市场中可能产生更多虚假信号。解决方法是在使用策略前先评估更高时间框架的市场状态，或增加额外的市场结构过滤器。
参数优化陷阱：过度优化参数可能导致曲线拟合，在未来市场环境中表现不佳。建议使用前向测试或不同市场条件下的稳健性测试来验证参数的有效性。
止损突破风险：在极端市场波动或流动性不足的条件下，实际止损可能遭遇滑点，超出预计损失。可以通过增加止损缓冲区或使用更保守的仓位规模来降低此风险。
技术指标滞后性：EMA和其他技术指标本质上具有滞后性，可能在市场快速转向时反应不足。建议结合更高时间框架分析或增加早期警告指标来弥补这一不足。
交易量质量问题：策略仅考虑交易量大小而非交易量结构和质量，可能在某些市场条件下产生误导。可以考虑增加交易量分布分析或资金流向指标以增强交易量分析的深度。

策略优化方向

基于代码分析，该策略可以从以下几个方向进行优化：

市场状态自适应：
- 实现市场结构识别功能，在趋势和区间市场使用不同的参数集
- 引入市场波动率指数(VIX)或其他市场情绪指标，在高波动期间自动调整风险参数
- 原因：这将使策略能够智能适应不同市场环境，提高整体稳定性
多时间框架分析：
- 加入更高时间框架的趋势确认机制
- 使用较低时间框架优化入场精度
- 原因：多时间框架分析能显著提高趋势识别的准确性，减少逆势交易
高级交易量分析：
- 引入交易量加权移动平均线(VWMA)作为额外的趋势确认
- 分析买卖压力而非仅考虑总交易量
- 原因：更精细的交易量分析可以提供关于市场参与者行为的更深入见解
机器学习增强：
- 使用简单的机器学习算法自动优化参数
- 基于历史数据识别最佳的吞没形态特征
- 原因：机器学习可以识别人类难以发现的微妙模式和关联
风险管理增强：
- 实现基于账户净值的动态仓位规模调整
- 添加日/周/月风险限制
- 引入盈亏平衡(breakeven)功能
- 原因：更先进的风险管理是长期交易成功的基础

总结

高级交易模式识别与动态风险管理策略是一个精心设计的交易系统，通过融合传统的吞没形态技术分析与现代量化方法，创建了一个全面的交易框架。该策略的核心优势在于其多维度的信号确认机制和适应性风险管理系统，使其能够在不同市场条件下保持相对稳定的表现。

策略通过50EMA趋势过滤、高级吞没形态识别、交易量和波动性确认等多重机制，显著提高了入场信号的质量。同时，通过斐波那契水平或ATR倍数计算的动态止损和获利目标，为每笔交易提供了清晰的风险回报结构。

尽管存在市场环境依赖性和技术指标滞后等固有局限，但通过建议的优化方向，如市场状态自适应、多时间框架分析和机器学习增强等，该策略有潜力进一步提升其稳健性和适应性。对于有经验的交易者，这是一个提供全面功能的专业级交易系统，而对于新手，则可作为学习高级交易概念和风险管理原则的教育工具。

策略源码

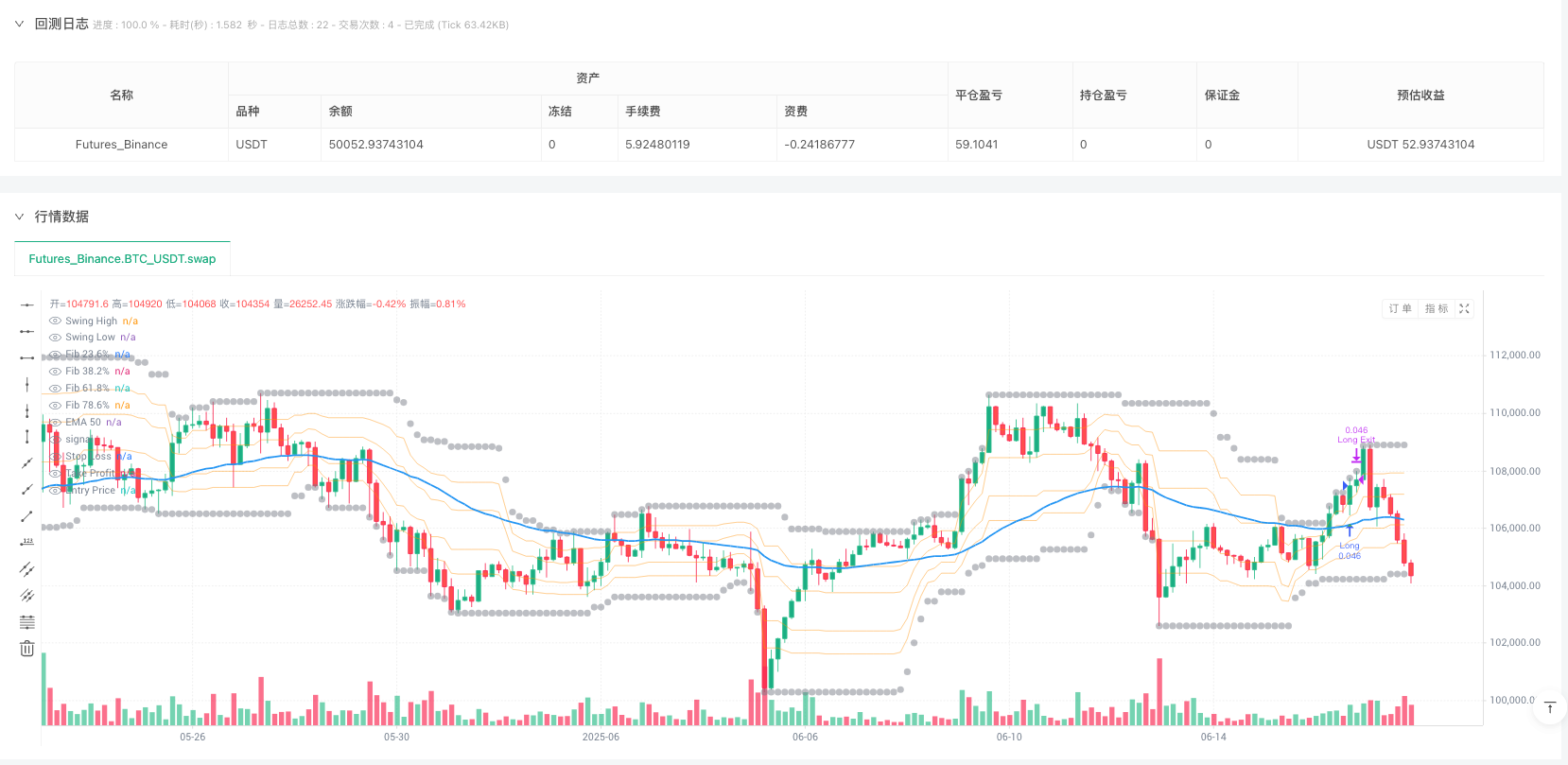

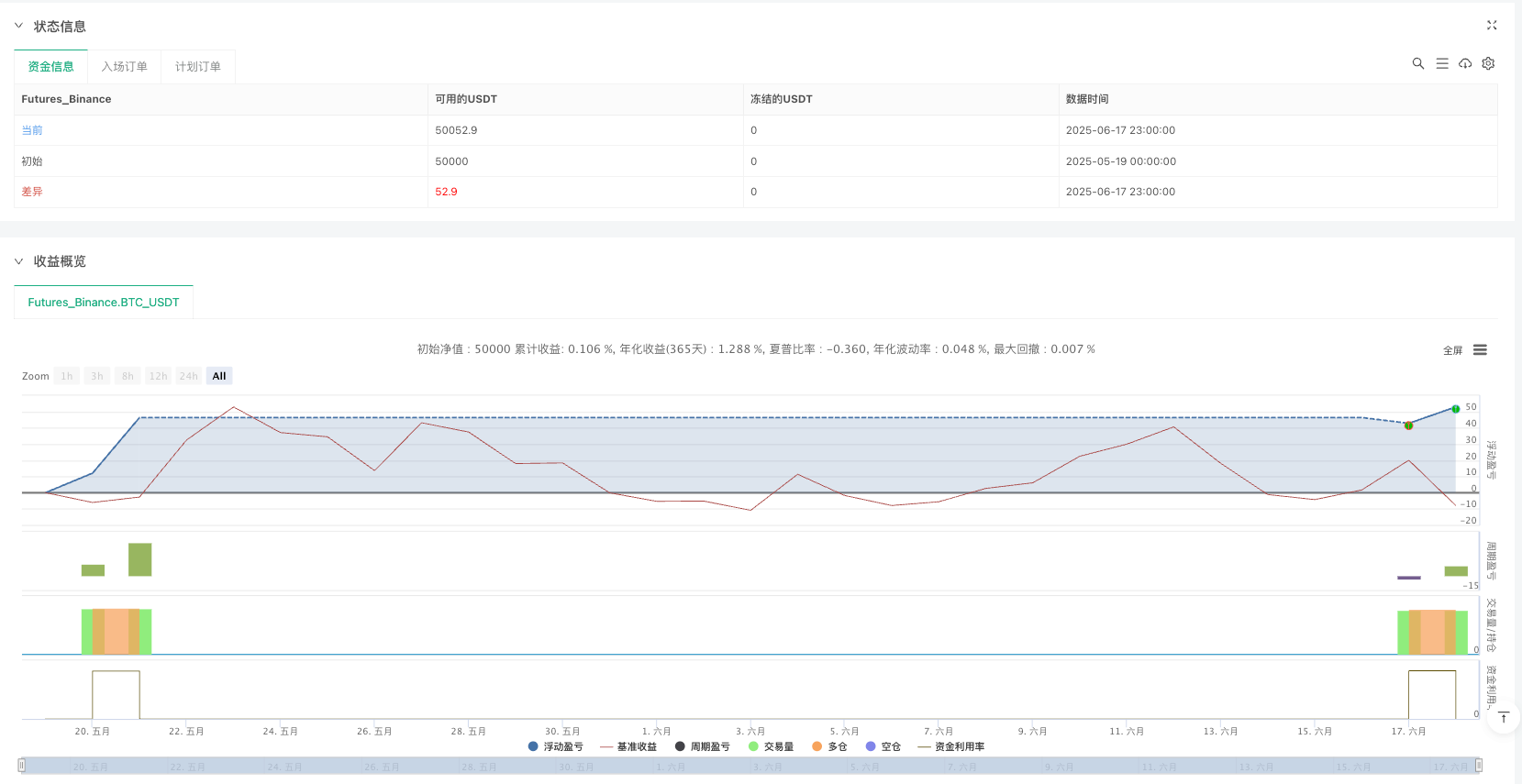

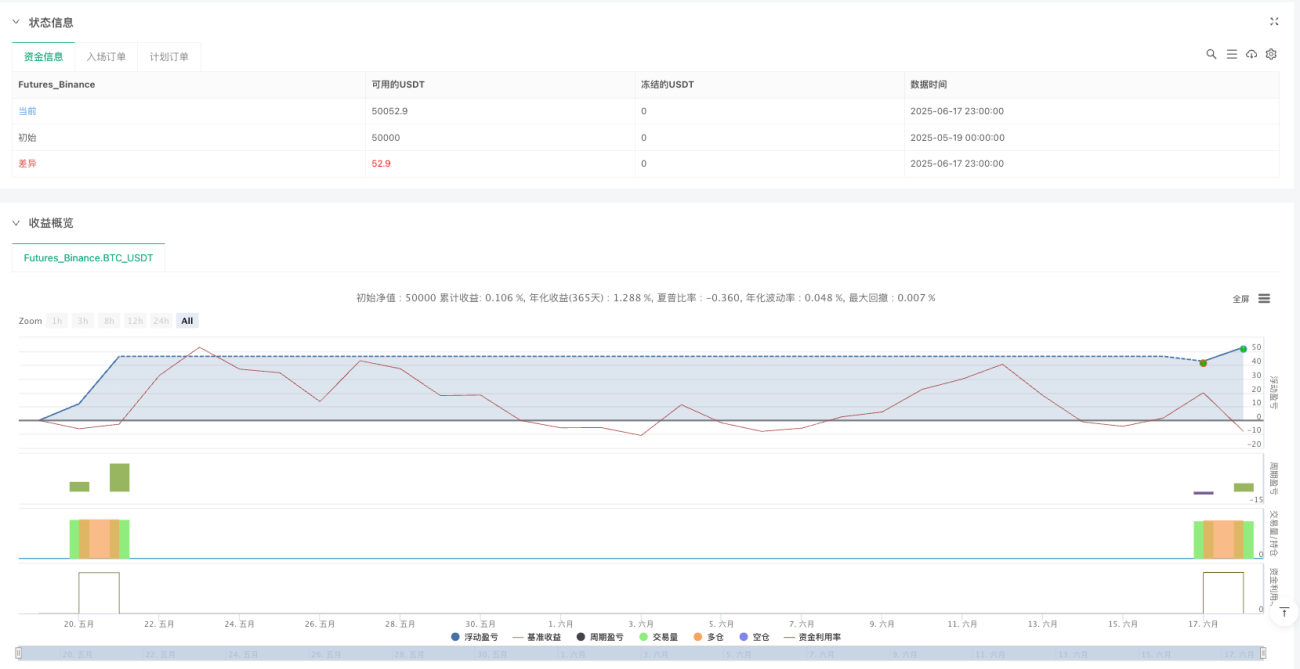

/*backtest
start: 2025-05-19 00:00:00
end: 2025-06-18 00:00:00
period: 3h
basePeriod: 3h
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/

//@version=6
strategy("🎯 IKODO Engulfing Strategy with Dynamic RR & Commission", shorttitle="IKODO Engulfing Pro", overlay=true, default_qty_type=strategy.percent_of_equity, default_qty_value=10, pyramiding=0, calc_on_every_tick=false, calc_on_order_fills=false, commission_type=strategy.commission.percent, commission_value=0.04)

// ═══════════════════════════════════════════════════════════════════════════════
// 📊 ADVANCED INPUT PARAMETERS
// ═══════════════════════════════════════════════════════════════════════════════

// Commission Settings
enable_commission = input.bool(true, "Enable Commission", group="💰 Commission Settings")
commission_rate = input.float(0.04, "Commission Rate (%)", minval=0.0, maxval=1.0, step=0.01, group="💰 Commission Settings", tooltip="Binance Futures: 0.02% Maker, 0.04% Taker")
commission_type_input = input.string("Percentage", "Commission Type", options=["Percentage", "Fixed USD"], group="💰 Commission Settings")

// Risk Management Inputs
rr_ratio = input.float(2.0, "Risk Reward Ratio", minval=0.5, maxval=10.0, step=0.1, group="🎯 Risk Management")
use_fibonacci_tp = input.bool(true, "Use Fibonacci Levels for TP", group="🎯 Risk Management")
fib_level_tp = input.float(0.618, "Fibonacci Level for TP", minval=0.236, maxval=1.0, step=0.001, group="🎯 Risk Management")

// Stop Loss Settings
sl_type = input.string("Fibonacci", "Stop Loss Type", options=["Fibonacci", "Fixed USD", "ATR Multiple"], group="🛡️ Stop Loss Settings")
sl_fib_level = input.float(0.236, "Fibonacci Level for SL", minval=0.1, maxval=0.5, step=0.001, group="🛡️ Stop Loss Settings")
sl_fixed_usd = input.float(50.0, "Fixed Stop Loss (USD)", minval=1.0, maxval=1000.0, step=1.0, group="🛡️ Stop Loss Settings")
sl_atr_multiple = input.float(1.5, "ATR Multiple for SL", minval=0.5, maxval=5.0, step=0.1, group="🛡️ Stop Loss Settings")

// EMA Settings
ema_length = input.int(50, "EMA Length", minval=1, maxval=200, group="📈 Trend Filter")
ema_source = input.source(close, "EMA Source", group="📈 Trend Filter")

// Pattern Recognition Settings
min_engulf_ratio = input.float(0.1, "Minimum Engulfing Ratio", minval=0.01, maxval=1.0, step=0.01, group="🔍 Pattern Recognition")
max_wick_ratio = input.float(0.3, "Maximum Wick Ratio", minval=0.1, maxval=0.8, step=0.01, group="🔍 Pattern Recognition")

// Advanced Filters
volume_filter = input.bool(true, "Use Volume Filter", group="🔧 Advanced Filters")
volume_multiplier = input.float(1.2, "Volume Multiplier", minval=1.0, maxval=3.0, step=0.1, group="🔧 Advanced Filters")
atr_filter = input.bool(true, "Use ATR Volatility Filter", group="🔧 Advanced Filters")
atr_length = input.int(14, "ATR Length", minval=1, maxval=50, group="🔧 Advanced Filters")
min_atr_ratio = input.float(0.5, "Minimum ATR Ratio", minval=0.1, maxval=2.0, step=0.1, group="🔧 Advanced Filters")

// Visualization Settings
show_fibonacci_levels = input.bool(true, "Show Fibonacci Levels", group="🎨 Visualization")

// ═══════════════════════════════════════════════════════════════════════════════
// 🧮 QUANTITATIVE CALCULATIONS
// ═══════════════════════════════════════════════════════════════════════════════

// EMA Calculation
ema_50 = ta.ema(ema_source, ema_length)

// ATR for Volatility Assessment
atr = ta.atr(atr_length)

// Volume Analysis
avg_volume = ta.sma(volume, 20)
volume_condition = not volume_filter or volume > avg_volume * volume_multiplier

// Fibonacci calculation for swing levels
swing_high = ta.highest(high, 20)
swing_low = ta.lowest(low, 20)

// ═══════════════════════════════════════════════════════════════════════════════
// 🔍 ADVANCED PATTERN RECOGNITION
// ═══════════════════════════════════════════════════════════════════════════════

// Current and Previous Candle Properties
curr_body = math.abs(close - open)
prev_body = math.abs(close[1] - open[1])
curr_range = high - low
prev_range = high[1] - low[1]

// Candle Color Identification
curr_bullish = close > open
curr_bearish = close < open
prev_bullish = close[1] > open[1]
prev_bearish = close[1] < open[1]

// Enhanced Engulfing Pattern Detection
bullish_engulfing = curr_bullish and prev_bearish and close > high[1] and low < low[1] and curr_body > prev_body * min_engulf_ratio

bearish_engulfing = curr_bearish and prev_bullish and close < low[1] and high > high[1] and curr_body > prev_body * min_engulf_ratio

// Wick Analysis for Quality Filter
curr_upper_wick = curr_bullish ? high - close : high - open
curr_lower_wick = curr_bullish ? open - low : close - low
wick_filter_long = curr_upper_wick <= curr_range * max_wick_ratio
wick_filter_short = curr_lower_wick <= curr_range * max_wick_ratio

// ATR Volatility Filter
atr_filter_condition = not atr_filter or curr_range >= atr * min_atr_ratio

// ═══════════════════════════════════════════════════════════════════════════════
// 📈 TREND ANALYSIS & ENTRY CONDITIONS
// ═══════════════════════════════════════════════════════════════════════════════

// Trend Conditions
uptrend = close > ema_50
downtrend = close < ema_50

// Complete Entry Conditions
long_condition = uptrend and bullish_engulfing and wick_filter_long and volume_condition and atr_filter_condition

short_condition = downtrend and bearish_engulfing and wick_filter_short and volume_condition and atr_filter_condition

// ═══════════════════════════════════════════════════════════════════════════════
// 🎯 ADVANCED STOP LOSS CALCULATION
// ═══════════════════════════════════════════════════════════════════════════════

// Function to calculate stop loss based on type
calculate_stop_loss(entry_price, is_long, sl_type, swing_high, swing_low, atr, sl_fib_level, sl_fixed_usd, sl_atr_multiple) =>
    var float stop_loss = na

    if sl_type == "Fibonacci"
        if is_long
            fib_range = swing_high - swing_low
            stop_loss := swing_low + (fib_range * sl_fib_level)
        else
            fib_range = swing_high - swing_low
            stop_loss := swing_high - (fib_range * sl_fib_level)

    else if sl_type == "Fixed USD"
        if is_long
            stop_loss := entry_price - sl_fixed_usd
        else
            stop_loss := entry_price + sl_fixed_usd

    else if sl_type == "ATR Multiple"
        if is_long
            stop_loss := entry_price - (atr * sl_atr_multiple)
        else
            stop_loss := entry_price + (atr * sl_atr_multiple)

    stop_loss

// Function to calculate take profit
calculate_take_profit(entry_price, stop_loss, is_long, use_fibonacci_tp, swing_high, swing_low, fib_level_tp, rr_ratio) =>
    var float take_profit = na

    if use_fibonacci_tp
        if is_long
            fib_range = swing_high - swing_low
            take_profit := swing_low + (fib_range * fib_level_tp)
        else
            fib_range = swing_high - swing_low
            take_profit := swing_high - (fib_range * fib_level_tp)
    else
        // Traditional RR-based TP
        if is_long
            risk = entry_price - stop_loss
            take_profit := entry_price + (risk * rr_ratio)
        else
            risk = stop_loss - entry_price
            take_profit := entry_price - (risk * rr_ratio)

    take_profit

// ═══════════════════════════════════════════════════════════════════════════════
// 🎯 DYNAMIC RISK MANAGEMENT SYSTEM
// ═══════════════════════════════════════════════════════════════════════════════

// Dynamic Stop Loss and Take Profit Calculation
var float entry_price = na
var float stop_loss = na
var float take_profit = na
var float commission_cost = na

if long_condition and strategy.position_size == 0
    entry_price := close
    stop_loss := calculate_stop_loss(entry_price, true, sl_type, swing_high, swing_low, atr, sl_fib_level, sl_fixed_usd, sl_atr_multiple)
    take_profit := calculate_take_profit(entry_price, stop_loss, true, use_fibonacci_tp, swing_high, swing_low, fib_level_tp, rr_ratio)

    // Calculate commission cost
    commission_cost := enable_commission and commission_type_input == "Fixed USD" ? sl_fixed_usd * 2 : 0

if short_condition and strategy.position_size == 0
    entry_price := close
    stop_loss := calculate_stop_loss(entry_price, false, sl_type, swing_high, swing_low, atr, sl_fib_level, sl_fixed_usd, sl_atr_multiple)
    take_profit := calculate_take_profit(entry_price, stop_loss, false, use_fibonacci_tp, swing_high, swing_low, fib_level_tp, rr_ratio)

    // Calculate commission cost
    commission_cost := enable_commission and commission_type_input == "Fixed USD" ? sl_fixed_usd * 2 : 0

// ═══════════════════════════════════════════════════════════════════════════════
// 🚀 STRATEGY EXECUTION WITH COMMISSION
// ═══════════════════════════════════════════════════════════════════════════════

// Entry Orders
if long_condition
    strategy.entry("Long", strategy.long, comment="🟢 Elite Long Entry")

if short_condition
    strategy.entry("Short", strategy.short, comment="🔴 Elite Short Entry")

// Exit Orders
if strategy.position_size > 0
    strategy.exit("Long Exit", "Long", stop=stop_loss, limit=take_profit, comment="🎯 Long Exit")

if strategy.position_size < 0
    strategy.exit("Short Exit", "Short", stop=stop_loss, limit=take_profit, comment="🎯 Short Exit")

// ═══════════════════════════════════════════════════════════════════════════════
// 📊 ADVANCED VISUALIZATION - GLOBAL SCOPE
// ═══════════════════════════════════════════════════════════════════════════════

// EMA Plot
plot(ema_50, "EMA 50", color=color.new(color.blue, 0), linewidth=2)

// Entry Signals
plotshape(long_condition, "Long Signal", shape.triangleup, location.belowbar, color.new(color.green, 0), size=size.normal)
plotshape(short_condition, "Short Signal", shape.triangledown, location.abovebar, color.new(color.red, 0), size=size.normal)

// Support/Resistance Levels
plot(strategy.position_size != 0 ? stop_loss : na, "Stop Loss", color.new(color.red, 0), linewidth=2, style=plot.style_linebr)
plot(strategy.position_size != 0 ? take_profit : na, "Take Profit", color.new(color.green, 0), linewidth=2, style=plot.style_linebr)

// Entry Price Line
plot(strategy.position_size != 0 ? entry_price : na, "Entry Price", color.new(color.yellow, 0), linewidth=1, style=plot.style_linebr)

// Fibonacci Levels Visualization - MOVED TO GLOBAL SCOPE
show_fib_condition = show_fibonacci_levels and (sl_type == "Fibonacci" or use_fibonacci_tp)
plot(show_fib_condition ? swing_high : na, "Swing High", color.new(color.gray, 50), linewidth=1, style=plot.style_circles)
plot(show_fib_condition ? swing_low : na, "Swing Low", color.new(color.gray, 50), linewidth=1, style=plot.style_circles)

// Additional Fibonacci Levels
fib_range = swing_high - swing_low
fib_236 = swing_low + (fib_range * 0.236)
fib_382 = swing_low + (fib_range * 0.382)
fib_618 = swing_low + (fib_range * 0.618)
fib_786 = swing_low + (fib_range * 0.786)

plot(show_fib_condition ? fib_236 : na, "Fib 23.6%", color.new(color.orange, 70), linewidth=1, style=plot.style_linebr)
plot(show_fib_condition ? fib_382 : na, "Fib 38.2%", color.new(color.orange, 70), linewidth=1, style=plot.style_linebr)
plot(show_fib_condition ? fib_618 : na, "Fib 61.8%", color.new(color.orange, 70), linewidth=1, style=plot.style_linebr)
plot(show_fib_condition ? fib_786 : na, "Fib 78.6%", color.new(color.orange, 70), linewidth=1, style=plot.style_linebr)

// ═══════════════════════════════════════════════════════════════════════════════
// 📈 ENHANCED PERFORMANCE METRICS DISPLAY
// ═══════════════════════════════════════════════════════════════════════════════

// Enhanced Information Table
var table info_table = table.new(position.top_right, 3, 12, bgcolor=color.new(color.white, 85), border_width=1)

if barstate.islast
    table.cell(info_table, 0, 0, "📊 ELITE STRATEGY PRO", text_color=color.black, text_size=size.small)

    // Risk Management Info
    table.cell(info_table, 0, 1, "Risk-Reward Ratio:", text_color=color.black, text_size=size.tiny)
    table.cell(info_table, 1, 1, str.tostring(rr_ratio, "#.##"), text_color=color.blue, text_size=size.tiny)

    // Commission Info
    table.cell(info_table, 0, 2, "Commission:", text_color=color.black, text_size=size.tiny)
    commission_text = enable_commission ? (commission_type_input == "Percentage" ? str.tostring(commission_rate, "#.##") + "%" : "$" + str.tostring(sl_fixed_usd, "#.##")) : "Disabled"
    table.cell(info_table, 1, 2, commission_text, text_color=enable_commission ? color.red : color.gray, text_size=size.tiny)

    // Stop Loss Type
    table.cell(info_table, 0, 3, "Stop Loss Type:", text_color=color.black, text_size=size.tiny)
    table.cell(info_table, 1, 3, sl_type, text_color=color.purple, text_size=size.tiny)

    // EMA Period
    table.cell(info_table, 0, 4, "EMA Period:", text_color=color.black, text_size=size.tiny)
    table.cell(info_table, 1, 4, str.tostring(ema_length), text_color=color.blue, text_size=size.tiny)

    // Current Trend
    table.cell(info_table, 0, 5, "Current Trend:", text_color=color.black, text_size=size.tiny)
    trend_text = uptrend ? "🟢 BULLISH" : downtrend ? "🔴 BEARISH" : "⚪ NEUTRAL"
    trend_color = uptrend ? color.green : downtrend ? color.red : color.gray
    table.cell(info_table, 1, 5, trend_text, text_color=trend_color, text_size=size.tiny)

    // ATR
    table.cell(info_table, 0, 6, "ATR:", text_color=color.black, text_size=size.tiny)
    table.cell(info_table, 1, 6, str.tostring(atr, "#.####"), text_color=color.blue, text_size=size.tiny)

    // Fibonacci Range
    table.cell(info_table, 0, 7, "Fib Range:", text_color=color.black, text_size=size.tiny)
    table.cell(info_table, 1, 7, str.tostring(fib_range, "#.####"), text_color=color.orange, text_size=size.tiny)

    // Current Position Info
    if strategy.position_size != 0
        current_pnl = strategy.position_size > 0 ? (close - entry_price) / entry_price * 100 : (entry_price - close) / entry_price * 100
        table.cell(info_table, 0, 8, "Current P&L:", text_color=color.black, text_size=size.tiny)
        pnl_color = current_pnl > 0 ? color.green : color.red
        table.cell(info_table, 1, 8, str.tostring(current_pnl, "#.##") + "%", text_color=pnl_color, text_size=size.tiny)

        // Risk Amount
        risk_amount = strategy.position_size > 0 ? entry_price - stop_loss : stop_loss - entry_price
        table.cell(info_table, 0, 9, "Risk per Share:", text_color=color.black, text_size=size.tiny)
        table.cell(info_table, 1, 9, str.tostring(risk_amount, "#.####"), text_color=color.orange, text_size=size.tiny)

        // Reward Amount
        reward_amount = strategy.position_size > 0 ? take_profit - entry_price : entry_price - take_profit
        table.cell(info_table, 0, 10, "Reward per Share:", text_color=color.black, text_size=size.tiny)
        table.cell(info_table, 1, 10, str.tostring(reward_amount, "#.####"), text_color=color.green, text_size=size.tiny)

// ═══════════════════════════════════════════════════════════════════════════════
// 🔔 ENHANCED ALERT CONDITIONS
// ═══════════════════════════════════════════════════════════════════════════════

// Alert conditions
alertcondition(long_condition, title="🟢 Elite Long Entry Pro", message="Elite Engulfing Strategy PRO: LONG signal detected with commission calculation.")

alertcondition(short_condition, title="🔴 Elite Short Entry Pro", message="Elite Engulfing Strategy PRO: SHORT signal detected with commission calculation.")

// Dynamic alerts with detailed information
if long_condition
    alert_msg = "🟢 LONG SIGNAL: Elite Engulfing Pro | Price: " + str.tostring(close, "#.####") + " | RR: " + str.tostring(rr_ratio, "#.##") + " | SL Type: " + sl_type + " | Commission: " + (enable_commission ? str.tostring(commission_rate, "#.##") + "%" : "Disabled")
    alert(alert_msg, alert.freq_once_per_bar)

if short_condition
    alert_msg = "🔴 SHORT SIGNAL: Elite Engulfing Pro | Price: " + str.tostring(close, "#.####") + " | RR: " + str.tostring(rr_ratio, "#.##") + " | SL Type: " + sl_type + " | Commission: " + (enable_commission ? str.tostring(commission_rate, "#.##") + "%" : "Disabled")
    alert(alert_msg, alert.freq_once_per_bar)

相关推荐

Forums

PINE Language FAQ Summary MyLanguage Web3 About Us

Product

Robot Strategy Node Platforms Tickets

API

Syntax guide User guide Trading api Blockchain Indicator
